T1-EK

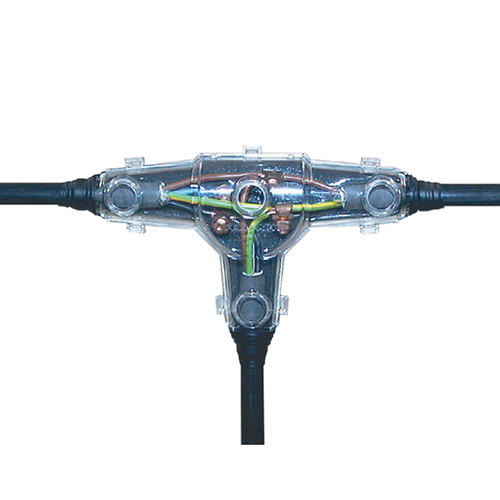

T Resin Joint Kit

Features

For sizing, see downloads

Cellpack T Cable Joints

Suitable for joining 3 cables underground and or under water

Voltage rating

1.2 kV

Application

Universally suitable to connect low voltage plastic-insulated cables or connectors insulated with PVC, PE, VPE, and EPR.

Suitable for both copper and aluminium conductors.

Application Ranges

Indoor, outdoor, underground, water (e.g submersible pumps), cable trays.

Features

  • High electrical insulation values
  • Watertight both longitudinally and transversely up to 1 metre
  • High mechanical strength
  • Good resistance against UV radiation, alkaline earths and chemical agents
  • Standard resin storable up to 40 months in the aluminium bag
  • Halogen-free polyurethanic cast resin, containing the correct volume ready for mixing within a handy two-chamber mixing bag. No need for skin contact
  • Low hardening temperature, fast hardening with no toxic emission during the mixing and casting
  • High quality, transparent, shockproof polycarbonate moulds, compact size
  • Visible splice position before casting
  • Large insertion opening for easy casting
  • Extremely simple and fast fitting – saves time and costs
  • Earthing kit included
  • Operational after 2 hours

Tests and Approvals

  • DIN VDE 0278 Part 1 and 2
  • DIN VDE 0278 PART 393
  • EN 50393 as well as
  • CENELEC HD623 (VDE 0278, PART 623)



Product CodeDescriptionPack QtyEANTSI Code
T1-EKCellpack Purecast Resin T Joint Kit5050291021340381072469
T2-EKCellpack Purecast Resin T Joint Kit5050291021364381072472
T21/2-EKCellpack Purecast Resin T Joint Kit5050291021357381072485
T3-EKCellpack Purecast Resin T Joint Kit5050291021371381072498
T4-EKCellpack Purecast Resin T Joint Kit5050291021388381072508
T5-EKCellpack Purecast Resin T Joint Kit5050291078634N/A
