BJK1

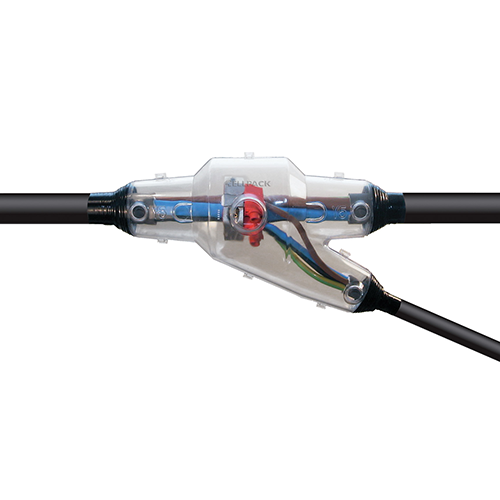

Branch Resin Joint Kit

Features

For sizing, see downloads

Cellpack Branch Cable Joints

Suitable for joining branch cables underground and or under water

Voltage rating

1.2 kV

Application

Universally suitable to connect low voltage plastic-insulated cables or connectors insulated with PVC, PE, VPE, and EPR.

Suitable for both copper and aluminium conductors.

Application Ranges

Indoor, outdoor, underground, water (e.g submersible pumps), cable trays.

Features

  • High electrical insulation values
  • Watertight both longitudinally and transversely up to 1 metre
  • High mechanical strength
  • Good resistance against UV radiation, alkaline earths and chemical agents
  • Standard resin storable up to 40 months in the aluminium bag
  • Halogen-free polyurethanic cast resin, containing the correct volume ready for mixing within a handy two-chamber mixing bag. No need for skin contact
  • Low hardening temperature, fast hardening with no toxic emission during the mixing and casting
  • High quality, transparent, shockproof polycarbonate moulds, compact size
  • Visible splice position before casting
  • Large insertion opening for easy casting
  • Extremely simple and fast fitting – saves time and costs
  • Earthing kit included
  • Operational after 2 hours

Tests and Approvals

  • DIN VDE 0278 Part 1 and 2
  • DIN VDE 0278 PART 393
  • EN 50393 as well as
  • CENELEC HD623 (VDE 0278, PART 623)



Product CodeDescriptionEANTSI Code
BJK1Cellpack Purecast Resin Branch Joint Kit505029106608220760139
BJK2Cellpack Purecast Resin Branch Joint Kit505029102896720760155
BJK3Cellpack Purecast Resin Branch Joint Kit505029102897420760171
BJK4Cellpack Purecast Resin Branch Joint Kit505029102898120760184
BJK5Cellpack Purecast Resin Branch Joint Kit505029102899820760210
BJK6SCellpack Purecast Resin Branch Joint Kit5050291080194403447299
BJK6Cellpack Purecast Resin Branch Joint Kit505029102900120760236
BJK7SCellpack Purecast Resin Branch Joint Kit5050291049139393548017
BJK7Cellpack Purecast Resin Branch Joint Kit505029102901820760249
BJK8SCellpack Purecast Resin Branch Joint Kit5050291047784393548046
BJK8Cellpack Purecast Resin Branch Joint Kit505029102902520760252
BJK9SCellpack Purecast Resin Branch Joint Kit5050291079198393548059
BJK9Cellpack Purecast Resin Branch Joint Kit505029102903220760278
