SJK1516

Straight Resin Joint Kit

Features

For sizing, please see downloads

Cellpack Straight Cable Joints

Suitable for joining 2 cables underground and or under water

Voltage rating

1.2 kV

Application

Universally suitable to connect low voltage plastic-insulated cables or connectors insulated with PVC, PE, VPE, and EPR.

Suitable for both copper and aluminium conductors.

Application Ranges

Indoor, outdoor, underground, water (e.g submersible pumps), cable trays.

Features

  • High electrical insulation values
  • Watertight both longitudinally and transversely up to 1 metre
  • High mechanical strength
  • Good resistance against UV radiation, alkaline earths and chemical agents
  • Standard resin storable up to 40 months in the aluminium bag

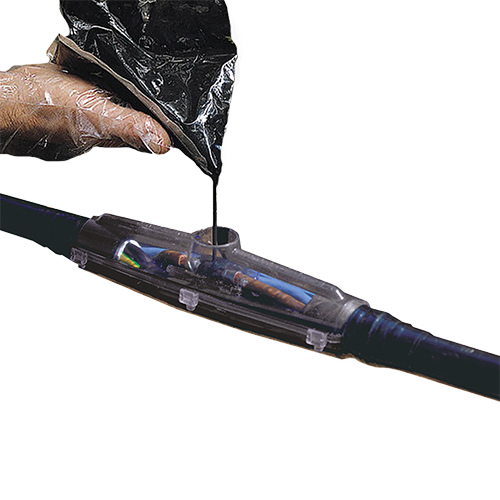

  • Halogen-free polyurethanic cast resin, containing the correct volume ready for mixing within a handy two-chamber mixing bag. No need for skin contact
  • Low hardening temperature, fast hardening with no toxic emission during the mixing and casting
  • High quality, transparent, shockproof polycarbonate moulds, compact size
  • Visible splice position before casting
  • Large insertion opening for easy casting
  • Extremely simple and fast fitting – saves time and costs
  • Earthing kit included
  • Operational after 2 hours

Tests and Approvals

  • DIN VDE 0278 Part 1 and 2
  • DIN VDE 0278 PART 393
  • EN 50393 as well as
  • CENELEC HD623 (VDE 0278, PART 623)



Product CodeDescriptionPack QtyEANTSI Code
SJK1516Cellpack Purecast Resin Joint Kit5050291020282391313189
SJK1Cellpack Purecast Resin Joint Kit505029102027520759881
SJK2Cellpack Purecast Resin Joint Kit505029102029920759920
SJK3Cellpack Purecast Resin Joint Kit505029102030520759946
SJK4Cellpack Purecast Resin Joint Kit505029102031220759975
SJK5SCellpack Purecast Resin Joint Kit5050291020336393547911
SJK5Cellpack Purecast Resin Joint Kit505029102032920759988
SJK6SCellpack Purecast Resin Joint Kit5050291020350393547924
SJK6Cellpack Purecast Resin Joint Kit505029102034320760003
SJK7SCellpack Purecast Resin Joint Kit5050291020374393547940
SJK7Cellpack Purecast Resin Joint Kit505029102036720760016
