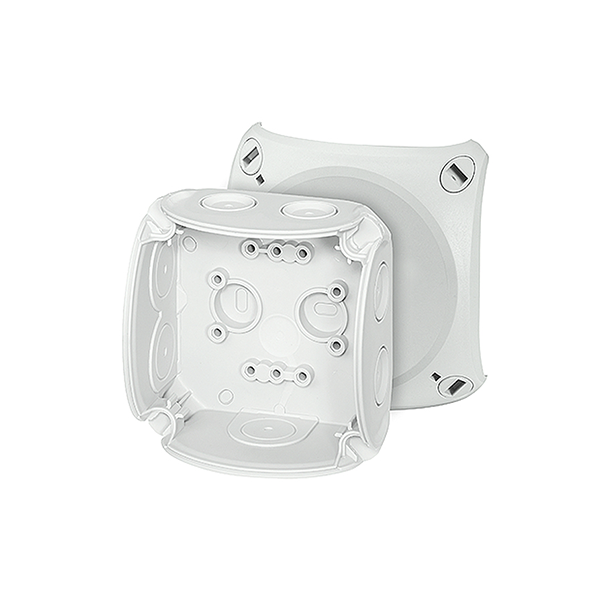

Hensel Grey Cable Junction Box - 93 x 93 x 62mm, IP66

Product Ref: CJBDK0200G

Features

OEM Part Number: DK 0200 G

  • Without terminals

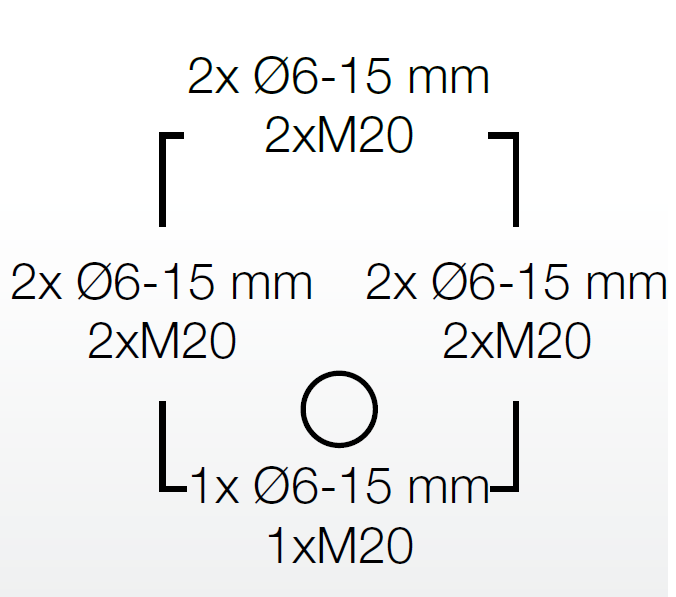

  • With integrated elastic membranes, which can be removed for cable entry via cable glands, sealing range 6.0-15.0 mm
  • With one cable entry in the bottom, sealing range Ø 6.0-13.0 mm
  • Lid fasteners sealable without accessories
  • Retaining strap and external brackets for wall fixing included
  • Colour: Grey, RAL 7035
  • To close opened membranes use grommets type EDK. Degree of protection = IP 66.
Rated insulation voltageUi = 1000 V a.c./d.c.
MaterialPP (polypropylene)
Degree of protectionIP 66
Mounting width74mm
Mounting height74mm
Max. installation depth47mm

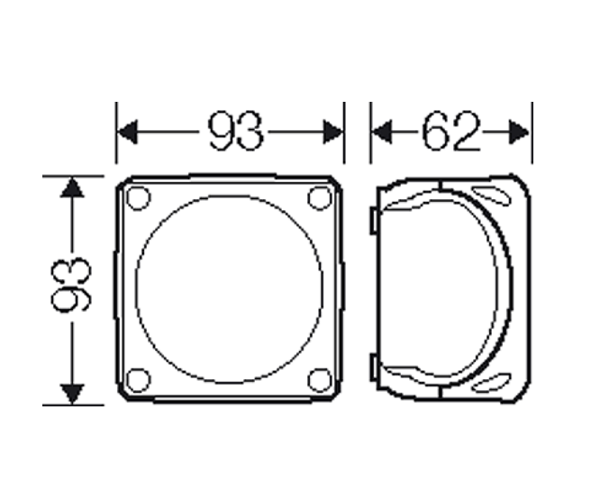

Width93mm
Height93mm
Depth62mm
Weight0.102kg
In accordance withIEC 60670-22
