PLNM12G
PLNM12G
PLNM12G
PLNM12G
PLNM12G

Polyamide Gland Accessories

Features

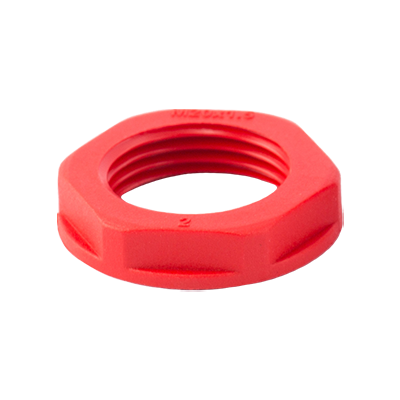

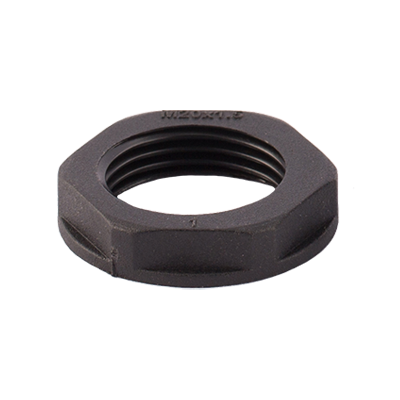

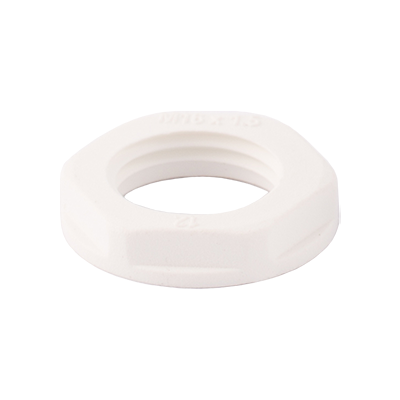

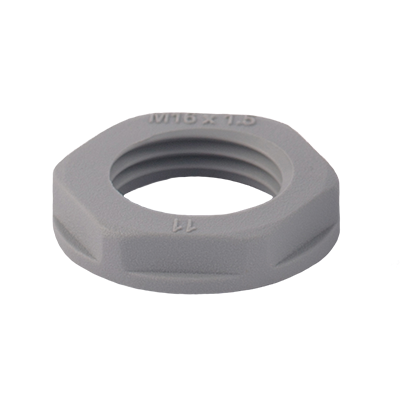

Plastic Locknuts:

Material: Polyamide 6 (halogen free) Trade name: Ultramid B

Operating temp range: -30°C to +80°C

Intermittent temp: Up to +150°C intermittent

Properies of plastic cable glands: Gross density DIN 53457: 1.14g/cm3

Chemical characteristics:
Resistant to:
Acids – high concentrate (conditionally resistant) Acids – low concentrate
Fuel DIN gasoline/super
Fuel DIN diesel
Mineral oil
Vegetable oils and fats

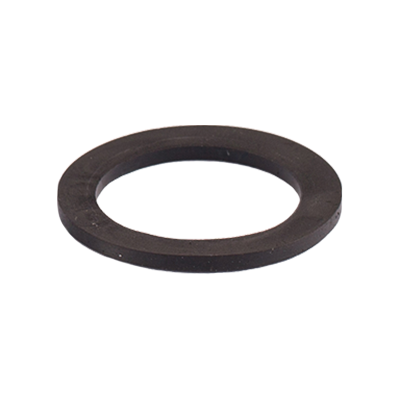

Black Nylon Washer:

Designed to extend/maintain the IP rating of the gland

Product CodeDescriptionEANTSI Code
M16 BWM16 Black Rubber washer5050291080460
M20 BWM20 Rubber Washer 5050291067430
M25-BWM25 Rubber Washer 5050291067300395795224
M32 BWM32 Rubber Washer 5050291067133
M40BWM40 Black Rubber Washer5050291086981395795240
M50 BWM50 Black Rubber washer5050291067089
PLNM12BLPolyamide Locknut Black5050291068451387325424
PLNM12WPolyamide Locknut White5050291068925387325479
PLNM12GPolyamide Locknut Grey5050291068628387325453
PLNM16BPolyamide Locknut Black5050291067881381075974
PLNM16GPolyamide Locknut Grey5050291067898381075987
PLNM20BPolyamide Locknut Black5050291096553381076025
PLNM20GPolyamide Locknut Grey5050291067928381076041
PLNM25GPolyamide Locknut Grey5050291096584381076070
PLNM16DGPolyamide Locknut Dark Grey5050291068468403450011
PLNM16WPolyamide Locknut White5050291067904381076009
PLNM20BLUEPolyamide Locknut Blue5050291068291387325495
PLNM20RPolyamide Locknut Red5050291069205381076054
PLNM20WPolyamide Locknut White5050291067935381076012
PLNM25BPolyamide Locknut Black5050291067942381076067
PLNM25BLUEPolyamide Locknut Blue5050291068307387325505
PLNM25DGPolyamide Locknut Dark Grey5050291068550403450024
PLNM25WPolyamide Locknut White5050291067966381076096
PLNM32BPolyamide Locknut Black5050291067973381076119
PLNM32GPolyamide Locknut Grey5050291067980381076135
PLNM32WPolyamide Locknut White5050291067997381076106
PLNM40BPolyamide Locknut Black5050291068253387325521
PLNM40GPolyamide Locknut Grey5050291068536387325547
PLNM50BPolyamide Locknut Black5050291068178387325576
PLNM50GPolyamide Locknut Grey5050291068161387325592
PLNM63BPolyamide Locknut Black5050291068260387325628
