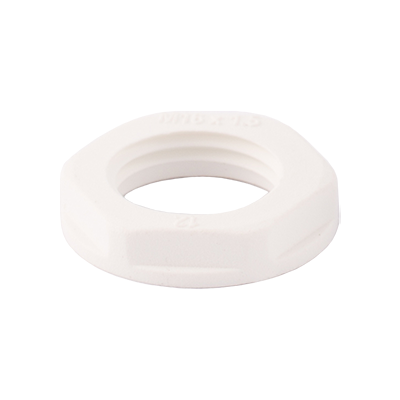

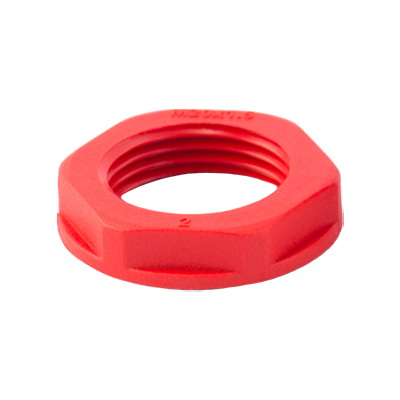

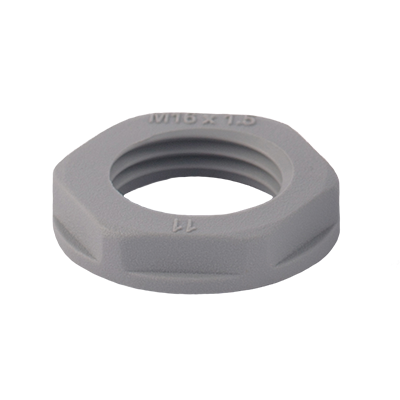

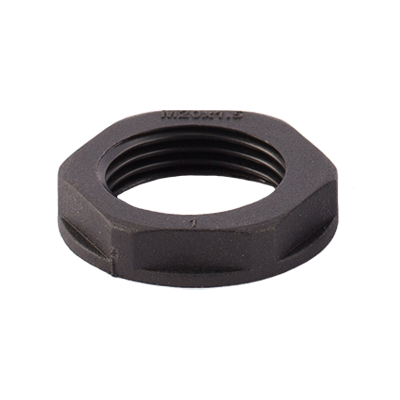

PG Polyamide Lock Nuts

Features

Plastic Locknuts:

Material: Polyamide 6 (halogen free) Trade name: Ultramid B

Operating temp range: -30°C to +80°C

Intermittent temp: Up to +150°C intermittent

Properies of plastic cable glands: Gross density DIN 53457: 1.14g/cm3

Chemical characteristics:
Resistant to:
Acids – high concentrate (conditionally resistant) Acids – low concentrate
Fuel DIN gasoline/super
Fuel DIN diesel
Mineral oil
Vegetable oils and fats

Product CodeDescriptionEANTSI Code
PLNPG7BPolyamide Locknut Black5050291014663381076151
PLNPG7GPolyamide Locknut Grey5050291014687381076148
PLNPG7DGPolyamide Locknut Dark Grey5050291014670403450105
PLNPG9BPolyamide Locknut Black5050291014694381076164
PLNPG9BLUEPolyamide Locknut Blue5050291014700387325864
PLNPG9GPolyamide Locknut Grey5050291014724381076177
PLNPG9DGPolyamide Locknut Dark Grey5050291014717403450118
PLNPG11BPolyamide Locknut Black5050291014410381076193
PLNPG11GPolyamide Locknut Grey5050291014434381076180
PLNPG11DGPolyamide Locknut Dark Grey5050291014427403450037
PLNPG13.5BPolyamide Locknut Black5050291014441381076203
PLNPG13.5DGPolyamide Locknut Dark Grey5050291014458403450040
PLNPG13.5GPolyamide Locknut Grey5050291014465381076216
PLNPG16BPolyamide Locknut Black5050291014472381076232
PLNPG16DGPolyamide Locknut Dark Grey5050291014489403450053
PLNPG16GPolyamide Locknut Grey5050291014496381076229
PLNPG21BPolyamide Locknut Black5050291014502381076245
PLNPG21DGPolyamide Locknut Dark Grey5050291014519403450066
PLNPG21GPolyamide Locknut Grey5050291014526381076258
PLNPG29BPolyamide Locknut Black5050291014533381076274
PLNPG29DGPolyamide Locknut Dark Grey5050291014557403450079
PLNPG29GPolyamide Locknut Grey5050291014564381076261
PLNPG36BPolyamide Locknut Black5050291014571381076287
PLNPG36BLUEPolyamide Locknut Blue5050291014588387325932
PLNPG36DGPolyamide Locknut Dark Grey5050291014595403450082
PLNPG36GPolyamide Locknut Grey5050291014601381076290
PLNPG42BPolyamide Locknut Black5050291014618387338615
PLNPG42DGPolyamide Locknut Dark Grey5050291014625403450095
PLNPG42GPolyamide Locknut Grey5050291014632387338644
PLNPG48BPolyamide Locknut Black5050291014649387338657
PLNPG48GPolyamide Locknut Grey5050291014656387338686
