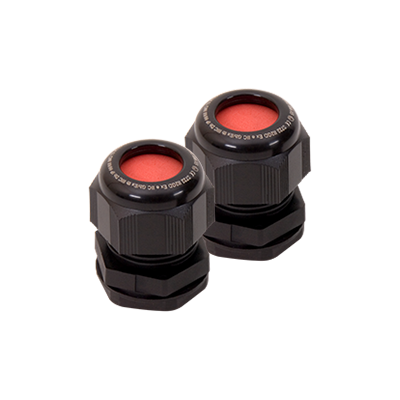

CGLNM20SB-EEXE

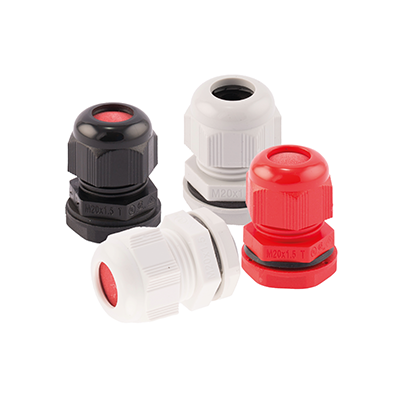

Hazardous Area - Polyamide Cable Glands

Features

HAZARDOUS AREAS

Examination certificate number: IMQ 08 ATEX 012 X

Examination & test report number: 43AI00015-43AI00015.1

Safety requirements: EN60079-0:2006 / EN60079-7:2007/ EN60079-11:2007 / EN61241-1:2004

Equipment marking: Increased Safety "e" and Intrinsic Safety "I" x 11 2GD, Ex e II , Ex i, Ex tD A21 (The cable glands Ex e II can be used with circuits Ex i.

These cable glands should have a nut coloured light blue). Suitable for use in: Zone 1, Zone 2 for Groups IIA, IlB, IIC. For: Gas & dust potential explosive atmospheres
Degree of protection: IP66-IP68 (EN 60529)

Temp range: -20°C to +80°C

Product CodeDescription
CGLNM20SB-EEXENylon M20s EEXE Gland c/w Washer and Locknut
CGLNM25B-EEXENylon M25 EEXE Gland c/w Washer and Locknut
CGLNM32B-EEXENylon M32 EEXE Gland c/w Washer and Locknut
CGLNM40B-EEXENylon M40 EEXE Gland c/w Washer and Locknut
CGLNM50B-EEXENylon M50 EEXE Gland c/w Washer and Locknut
CGLNM63B-EEXENylon M63 EEXE Gland c/w Washer and Locknut
