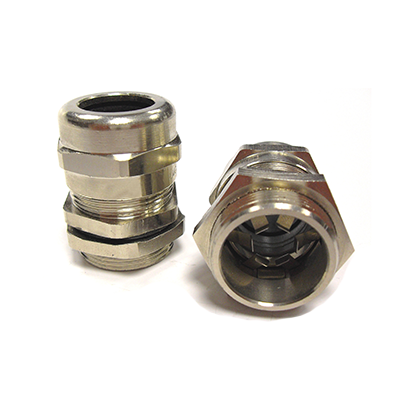

EMC16NP-LP

EMC LP Gland

Features

Applications: EMC NP-LP Range
• Suitable for the shielding of cable for electromagnetical purposes.
• Cable gland with neoprene sealing-ring and polyamide traction relief clamping insert.
• Supplied with lock-nut and neoprene 0-ring on entry thread.
Ingress Protection: IP68 EN60529
Temperature Rating: -40°C to +100°C
Pressure Rating: 5 bar
Finish: Bright nickel-plated

Product CodeDescriptionEANTSI Code
EMC16NP-LPNickel-Plated Gland 16mm5050291008235395795350
EMC20NP-LPNickel-Plated Gland 20mm5050291008259395795415
EMC25NP-LPNickel-Plated Gland 25mm5050291008273395795428
EMC32NP-LPNickel-Plated Gland 32mm5050291008297395795431
EMC40NP-LPNickel-Plated Gland 40mm5050291008303395795444
EMC50NP-LPNickel-Plated Gland 50mm5050291008310395795457
EMC63NP-LPNickel-Plated Gland 63mm5050291008327395795460
