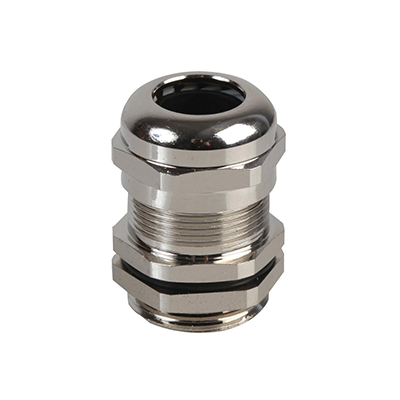

EMC16NP

EMC Gland

Features

Applications: EMC EMC Grip Range
• Suitable for the shielding of cable for electromagnetical purposes.
• Cable gland with neoprene sealing-ring and polyamide traction relief clamping insert.
• Supplied with lock-nut and neoprene 0-ring on entry thread.
Approval: BS EN 50262:1999
Ingress Protection: IP68 EN60529
Temperature Rating: -20°C to +100°C
Pressure Rating: 5 bar
Finish: Bright nickel-plated

Product CodeDescriptionEANTSI Code
EMC16NPNickel-Plated Gland 16mm5050291008228390066042
EMC20NPNickel-Plated Gland 20mm5050291008242388266197
EMC25NPNickel-Plated Gland 25mm5050291008266388266223
EMC32NPNickel-Plated Gland 32mm5050291008280388266236
