TCW20S PACK ALT-EN

Tauras ALT CW Standard & LSF Glands

Features

Application: Brass indoor and outdoor gland suitable for all types of steel wire armoured cable (SWA), providing an environmental
seal on the outer cable sheath. The gland also provides mechanical cable retention and electrical continuity via armour wire termination.

Operating temp: -20°C to +80°C
Ingress protection: IP66
Approval: BS EN 62444:2013

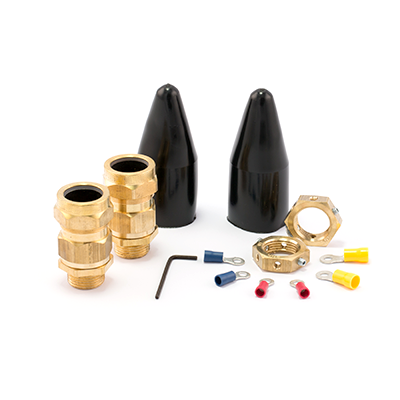

Pack content: Gland(s), shroud(s), EarthingNutTM(s) and crimp terminations

Product CodeDescriptionEANTSI Code
TCW20S PACK ALT-ENTauras CW20S ALT Gland Pack 5050291089920404195948
TCW20 PACK ALT-ENTauras CW20 ALT Gland Pack5050291089937404195980
TCW25 PACK ALT-ENTauras CW25 ALT Gland Pack5050291089944404195993
TCW32 PACK ALT-ENTauras CW32 ALT Gland Pack5050291089951404196015
TCW40 PACK ALT-ENTauras CW40 ALT Gland Pack5050291091961404196044
TCW50S PACK ALT-ENTauras CW50S ALT Gland Pack5050291091978404196248
TCW50 PACK ALT-ENTauras CW50 ALT Gland Pack5050291091985404196235
TCW63S PACK ALT-ENTauras CW63S ALT Gland Pack5050291091992404196086
TCW63 PACK ALT-ENTauras CW63 ALT Gland Pack5050291092005404196060
TCW20SLSF PACK ALT-ENTauras CW20S LSF ALT Gland Pack5050291092104404196536
TCW20LSF PACK ALT-ENTauras CW20 LSF ALT Gland Pack5050291092111404196523
TCW25LSF PACK ALT-ENTauras CW25 LSF ALT Gland Pack5050291092128404196549
TCW32LSF PACK ALT-ENTauras CW32 LSF ALT Gland Pack5050291092135404196552
TCW40LSF PACK ALT-ENTauras CW40 LSF ALT Gland Pack5050291092142404196565
TCW50SLSF PACK ALT-ENTauras CW50S LSF ALT Gland Pack5050291092159404196581
TCW50LSF PACK ALT-ENTauras CW50 LSF ALT Gland Pack5050291092166404196578
TCW63SLSF PACK ALT-ENTauras CW63S LSF ALT Gland Pack5050291092173404196604
TCW63LSF PACK ALT-ENTauras CW63 LSF ALT Gland Pack5050291092180404196594
