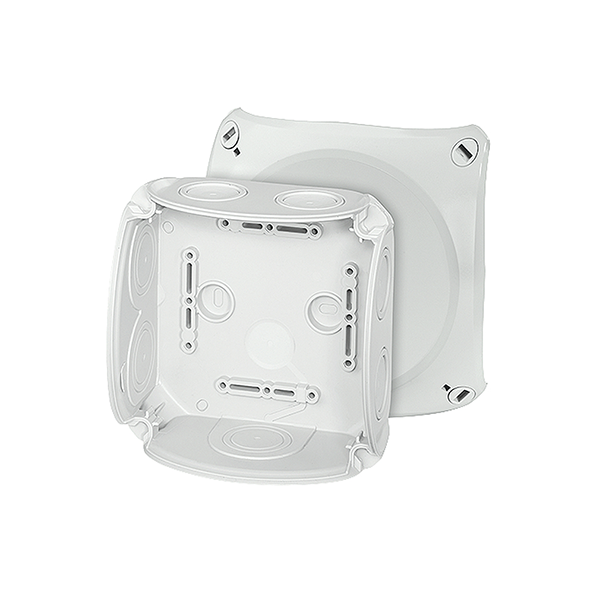

Hensel Grey Cable Junction Box - 130 x 130 x 77mm, IP66

Product Ref: CJBDK0600G

Features

OEM Part Number: DK 0600 G

  • Without terminals

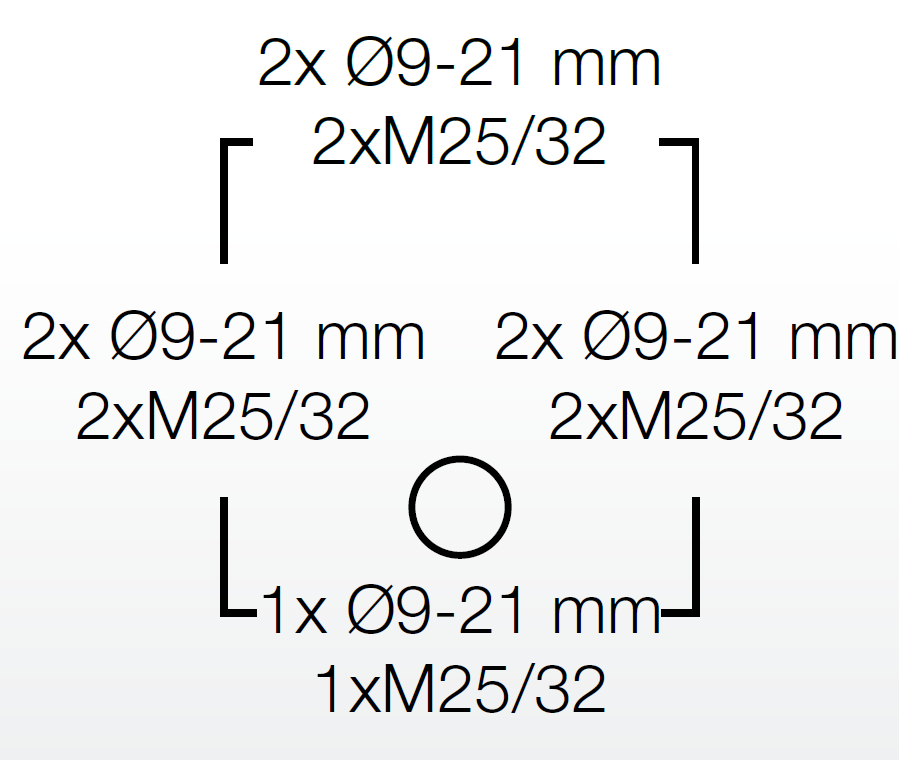

  • With integrated elastic membranes, which can be removed for cable entry via cable glands, sealing range 9.0-21.0mm
  • With one cable entry in the bottom, sealing range Ø 9.0-20.0mm
  • Lid fasteners sealable without accessories
  • Retaining strap and external brackets for wall fixing included
  • Colour: Grey, RAL 7035
  • To close opened membranes use grommets type EDK. Degree of protection = IP 66.
Rated insulation voltageUi = 1000 V a.c./d.c.
MaterialPP (polypropylene)
Degree of protectionIP 66
Mounting width102mm
Mounting height102mm
Max. installation depth62mm

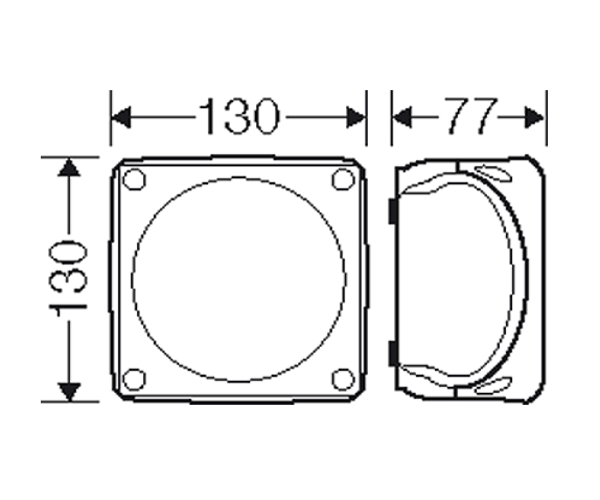

Width130mm
Height130mm
Depth77mm
Weight0.176kg
In accordance withIEC 60670-22
