CJBDK0400G
CJBDK0400G

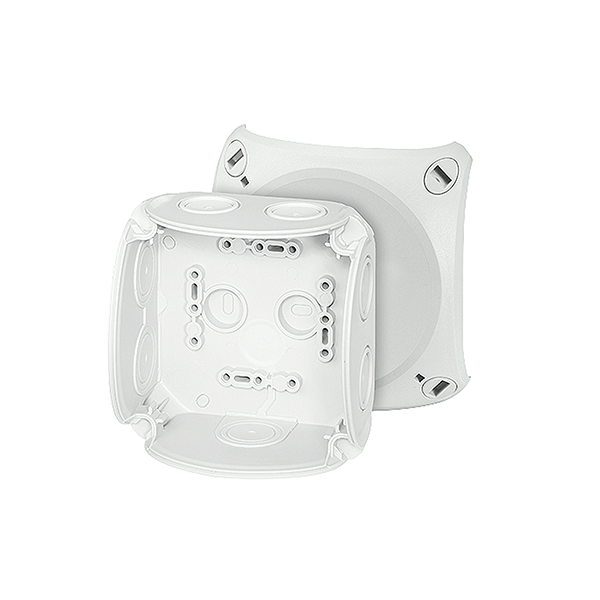

Hensel Grey Cable Junction Box - 104 x 104 x 70mm, IP66

Product Ref: CJBDK0400G

Features

OEM Part Number: DK 0400 G

  • Without terminals

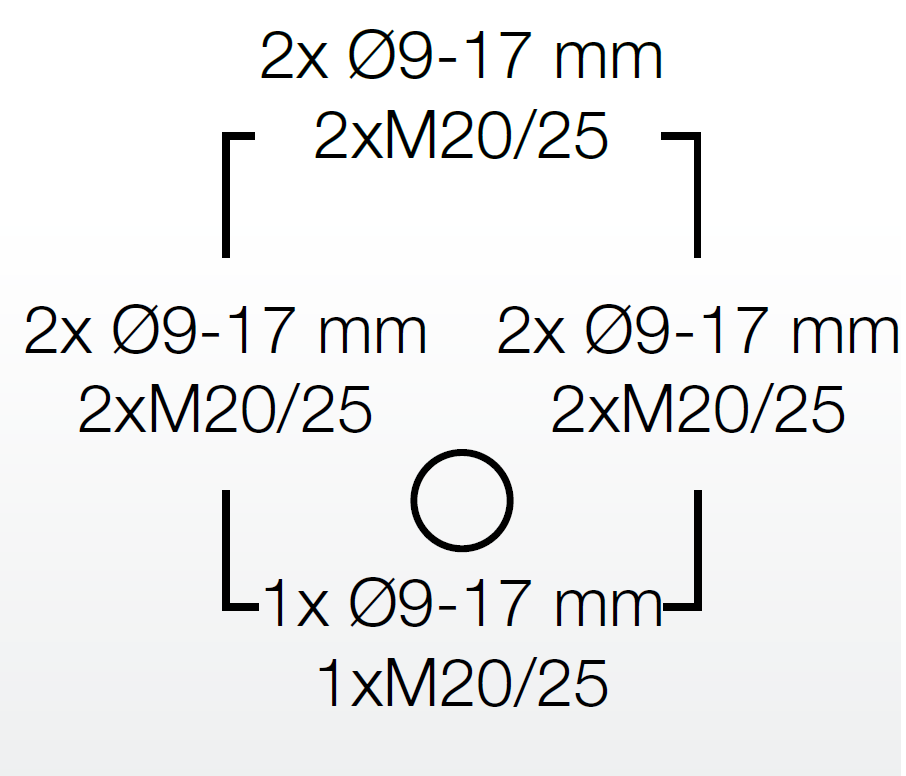

  • With integrated elastic membranes, which can be removed for cable entry via cable glands, sealing range 9.0-17.0mm
  • With one cable entry in the bottom, sealing range Ø 6.0-15.0mm
  • Lid fasteners sealable without accessories
  • Retaining strap and external brackets for wall fixing included
  • Colour: Grey, RAL 7035
  • To close opened membranes use grommets type EDK. Degree of protection = IP 66.
Rated insulation voltageUi = 1000 V a.c./d.c.
MaterialPP (polypropylene)
Degree of protectionIP 66
Mounting width83mm
Mounting height83mm
Max. installation depth55mm

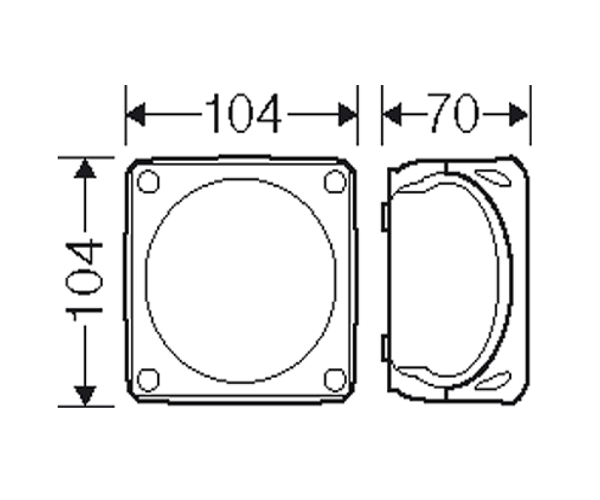

Width104mm
Height104mm
Depth70mm
Weight0.122kg
In accordance withIEC 60670-22
