CJBKF0200B
CJBKF0200B
CJBKF0200B

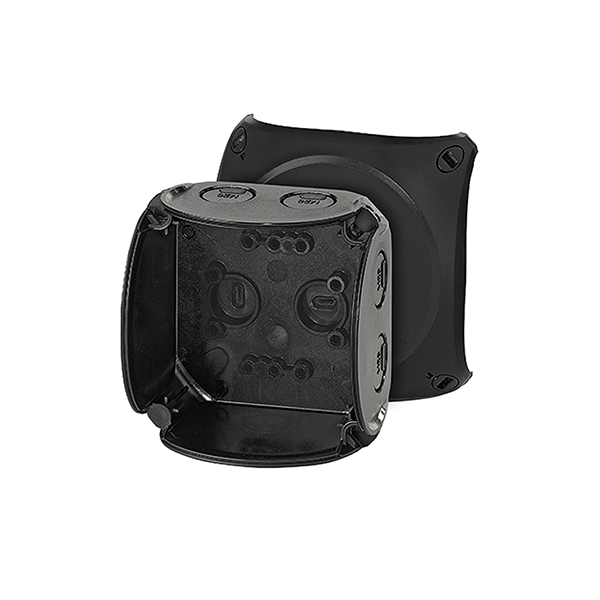

Hensel Black Cable Junction Box - 93 x 93 x 62mm

Product Ref: CJBKF0200B

Features

OEM Part Number: KF 0200 B

  • Without terminals
  • Weatherproof resistant to weather influences (UV due to solar radiation, protected against rainwater, temperature resistant, impact resistant, etc.)
  • Saltwater-proof
  • Offshore applications
  • Lid fasteners sealable without accessories
  • Retaining strap and external brackets for wall fixing included
  • Colour: Black, RAL 9011
IP68*

*IP68 rating achieved when used in conjunction with STORM Gland

  • STORM2016
  • STORM20S
  • STORM20
View Glands
Rated insulation voltageUi = 1000 V a.c./d.c.
MaterialPC-GFS (polycarbonate)
Degree of protectionIP 66 / IP 67 / IP 69
IP 67, temporary submersion
IP 69, water pressure max. 100 bar, water temperature max. 80 °C, distance ≥ 0.15 m
Mounting width74mm
Mounting height74mm
Max. installation depth47mm
Width93mm
Height93mm
Depth62mm
Weight0.11kg
In accordance withIEC 60670-22
In accordance withDNV GL - Certificate No: TAE00000EE
