Standard Grade Polyolefin Green/Yellow

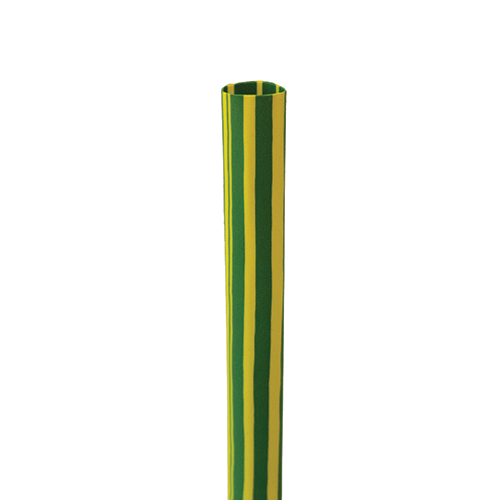

Green and yellow striped, flexible polyolefin sleeving

SG-G/Y is a general purpose, flexible polyolefin
tubing for a wide range of applications such as
insulation, strain relief, light-duty harnessing or
where the international electrical ground
designation is intended.

• Shrink ratio 2:1
• Minimum shrink temperature: 90°C
• Operating temperature: -30°C to +125°C
• Flammability: UL VW-1
• UL224 (Reference standard)

Product CodeDescriptionPack QtyEANTSI Code
SG1.2G/YHeatshrink 1.2mm Green/Yellow15050291017923390066657
SG1.6G/YHeatshrink 1.6mm Green/Yellow15050291018012390066754
SG2.4G/YHeatshrink 2.4mm Green/Yellow15050291018654381077163
SG3.2G/YHeatshrink 3.2mm Green/Yellow5050291019064381077286
SG4.8G/YHeatshrink 4.8mm Green/Yellow5050291019330381077299
SG6.4G/YHeatshrink 6.4mm Green/Yellow5050291019583381077396
SG9.5G/YHeatshrink 9.5mm Green/Yellow5050291019897381077493
SG12.7G/YHeatshrink 12.7mm Green/Yellow5050291018203381077600
SG19G/YHeatshrink 19mm Green/Yellow5050291018531381077613
SG25G/YHeatshrink 25mm Green/Yellow5050291018876381077765
SG38G/YHeatshrink 38mm Green/Yellow5050291019194381077778
SG50G/YHeatshrink 50mm Green/Yellow5050291019453381077781
SG75G/YHeatshrink 75mm Green/Yellow5050291019781381077794
