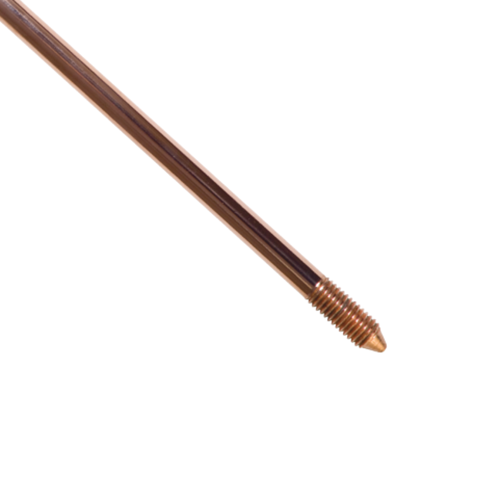

Copper Bonded Grounding Rod


Manufactured from low carbon steel of grade BS970 or AISI 1018 with a high tensile strength of at least 600N/mm²
Low carbon steel cores are molecularly bonded with a 99.9% pure electrolytic copper up to a thickness of 0.25mm

• Perfectly bonded rod will last longer, drive easier and will not crack
• Corrosion resistance while providing the lowest resistance to ground
• Threads are rolled by roll threading process, which ensures that an even copper covering is maintained, even at the root of the thread - providing greater strength than a cut thread
• Thread rolling process raises the surface of the rod so that the thread diameter is greater than the shank diameter

Product CodeDescriptionPack QtyEANTSI Code
CER95-1200Copper Bonded Earthing Rod 9.5 x 1200mm (3/8")5050291003032392021195
CER16-1200Copper Bonded Earthing Rod 16 x 1200mm (5/8")5050291003025392021205
