Piano Key Connectors


The new range of piano key push-in wire connectors are ideal for a quick, reliable, easy and convenient way for the installation of cable conductors in a range of electrical wiring applications.

• Quick Release
• Can be applied without the need for any tools
• For use on both solid and flexible conductors
• Easy to use – strip cable and insert into connector

Wire Cross Section: From 0.75mm2 to 2.5mm2

Cable Types: Solid & flexible wires

Operating Voltage: 400V AC

Operating Current: 32A (max)

Operating Temp: -30°C to +110°C

Flammability Class: UL94 - VØ

Approvals: EN 60998-1, EN 60998-2

Cable Stripping Length: 10mm

Housing Material: Plastic GWT 960°C

Contact Material: Electrolytic Copper

Spring Material: Hardened Steel

Product CodeDescriptionPack QtyEANTSI Code

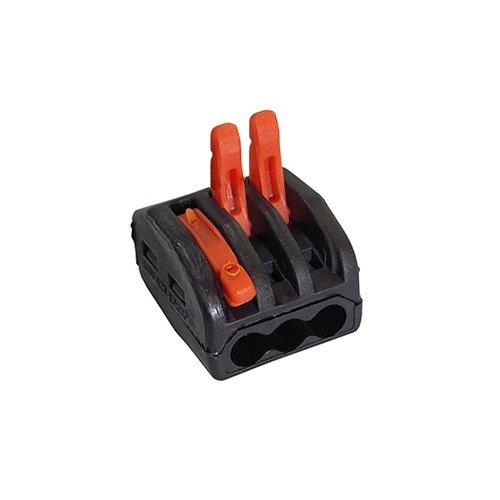

PKC33-Way Piano Key Connectors105050291000192396187459
PKC55-Way Piano Key Connectors105050291000208397132568
