MC4 Connectors


MC4 connector – male & female complete 2.5 / 4 / 6mm2
UV resistant / flame retardant UL94-V0, IP67 rated

Rated voltage: 1500V DC Rated current: 30 amp

Temp range: -40°C to +85°C

Material: Polyphenylene Oxide (PPO)

Approval: IEC 62852 (Ed.1)

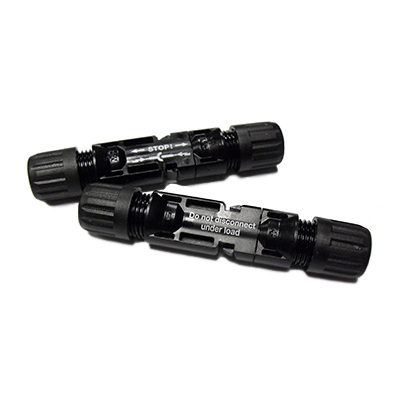

MC4C: Male & female complete

MC4-MC: Male pin & housing only

MC4-FC: Female pin & housing only

MC4-M: Male pin only MC4-F: Female pin only

Product CodeDescriptionEANTSI Code
MC4CMC4 Solar Connector - Male and Female Complete5050291012676394419051
MC4-MCMC4 Male Pin and Housing Only5050291012713394593870
MC4-FCMC4 Female Pin and Housing Only5050291012690394593896
MC4MMC4 Male Pin Only5050291012706394593922
MC4FMC4 Female Pin Only5050291012683394593935

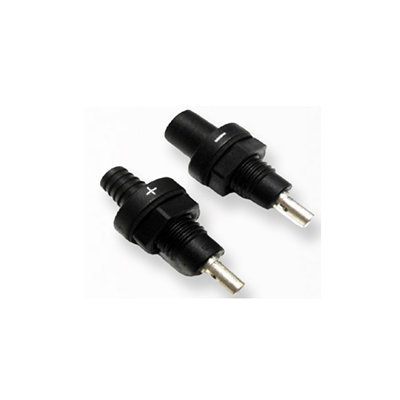

MC4PMC4 Male and Female Panel Connector5050291012720394593948

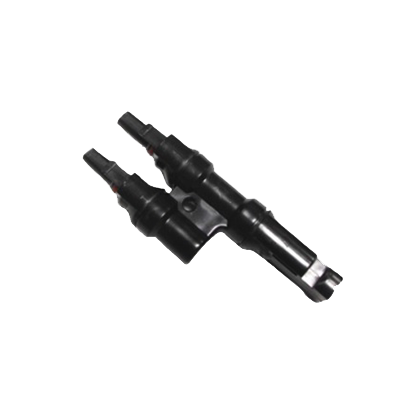

MC4T1F2MMC4 Branch Connector 1 X Female 2 X Male5050291012737394593964
MC4T1M2FMC4 Branch Connector 1 X Male 2 X Female5050291012744394593951
