95mm - 150mm TQ Range - Copper Tube Terminals


Application: Un-insulated heavy duty terminals suitable for power cables up to 1000 volts

Material: Manufactured from seamless copper tube to BS EN 12449:1999

Finish: Electro Tin plated to BS 1872:1974

  • All terminals are manufactured from 99 .5% copper and fully annealed to ensure optimum ductility to avoid severe deformation such as cracking and splitting when crimped
  • Terminals are supplied with an inspection window which enables the user to ensure full and correct insertion of the conductor and a flared entry ensures a smooth transition from terminal to conductor
  • Internal barrel diameters suit standard cables as defined in BS 6360
  • All SWA terminals are identified on the palm with cable size (and stud hole size) to ensure correct selection of the appropriate tool and dies

Approved to: BS EN 61238-1:2003 Grade A

Certified by: Dekra International

All SWA Copper Tube Terminals are despatched in sealed SWA branded bags to ensure quality & traceability for our customers

Product CodeDescriptionPack QtyEANTSI Code
95-6TQCopper Tube Terminal 95mm X M6 Hole1050502910462441989955
95-8TQCopper Tube Terminal 95mm X M8 Hole1050502910231081987559

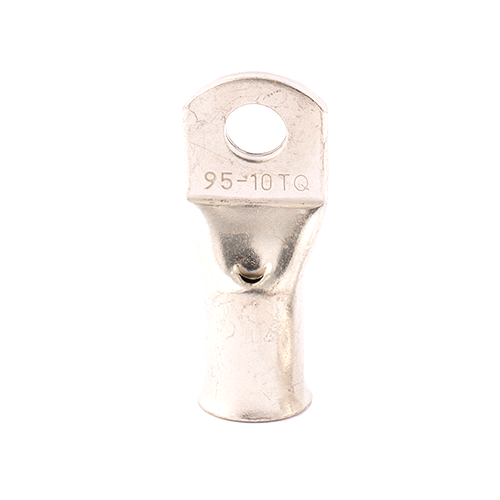

95-10TQCopper Tube Terminal 95mm X M10 Hole1050502910230611987588
95-12TQCopper Tube Terminal 95mm X M12 Hole1050502910230781987614
95-14TQCopper Tube Terminal 95mm X M14 Hole1050502910230851987643
95-16TQCopper Tube Terminal 95mm X M16 Hole1050502910230921987672
120-8TQCopper Tube Terminal 120mm X M8 Hole1050502910229721989984
120-10TQCopper Tube Terminal 120mm X M10 Hole1050502910229101987708

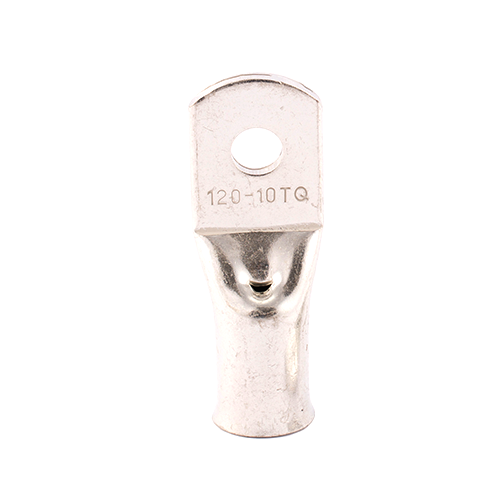

120-12TQCopper Tube Terminal 120mm X M12 Hole1050502910229411987737
120-14TQCopper Tube Terminal 120mm X M14 Hole1050502910229581987766
120-16TQCopper Tube Terminal 120mm X M16 Hole1050502910229651987795
120-20TQCopper Tube Terminal 120mm X M20 Hole1050502910363371990012
150-8TQCopper Tube Terminal 150mm X M8 Hole1050502910233131990041
150-10TQCopper Tube Terminal 150mm X M10 Hole1050502910416691987834

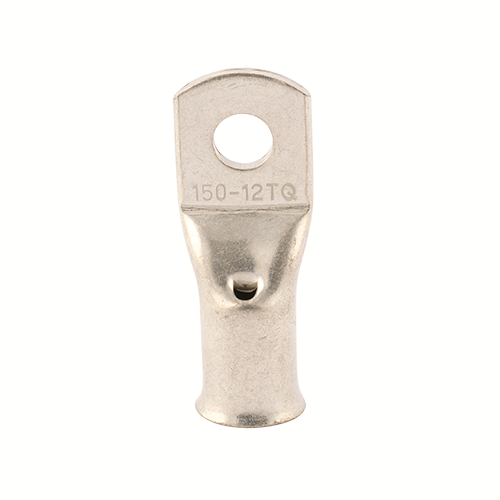

150-12TQCopper Tube Terminal 150mm X M12 Hole1050502910232831987863
150-14TQCopper Tube Terminal 150mm X M14 Hole1050502910232901987892
150-16TQCopper Tube Terminal 150mm X M16 Hole1050502910233061987928
150-20TQCopper Tube Terminal 150mm X M20 Hole1050502910363511987957
