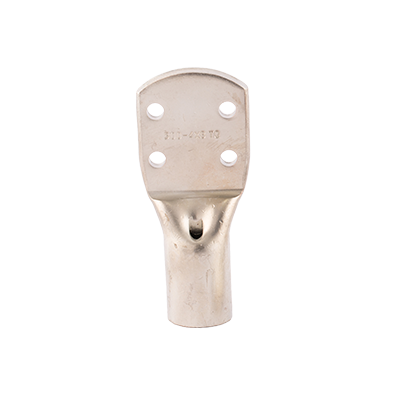

4 Hole Transformer Fixing Terminals - Copper Tube


Application: Un-insulated heavy duty terminals suitable for power cables up to 1000 volts

Material: Manufactured from seamless copper tube to BS EN 12449:1999

Finish: Electro Tin plated to BS 1872:1974

  • All terminals are manufactured from 99 .5% copper and fully annealed to ensure optimum ductility to avoid severe deformation such as cracking and splitting when crimped
  • Terminals are supplied with an inspection window which enables the user to ensure full and correct insertion of the conductor and a flared entry ensures a smooth transition from terminal to conductor
  • Internal barrel diameters suit standard cables as defined in BS 6360
  • All SWA terminals are identified on the palm with cable size (and stud hole size) to ensure correct selection of the appropriate tool and dies

Approved to: BS EN 61238-1:2003 Grade A

Certified by: Dekra International

All SWA Copper Tube Terminals are despatched in sealed SWA branded bags to ensure quality & traceability for our customers

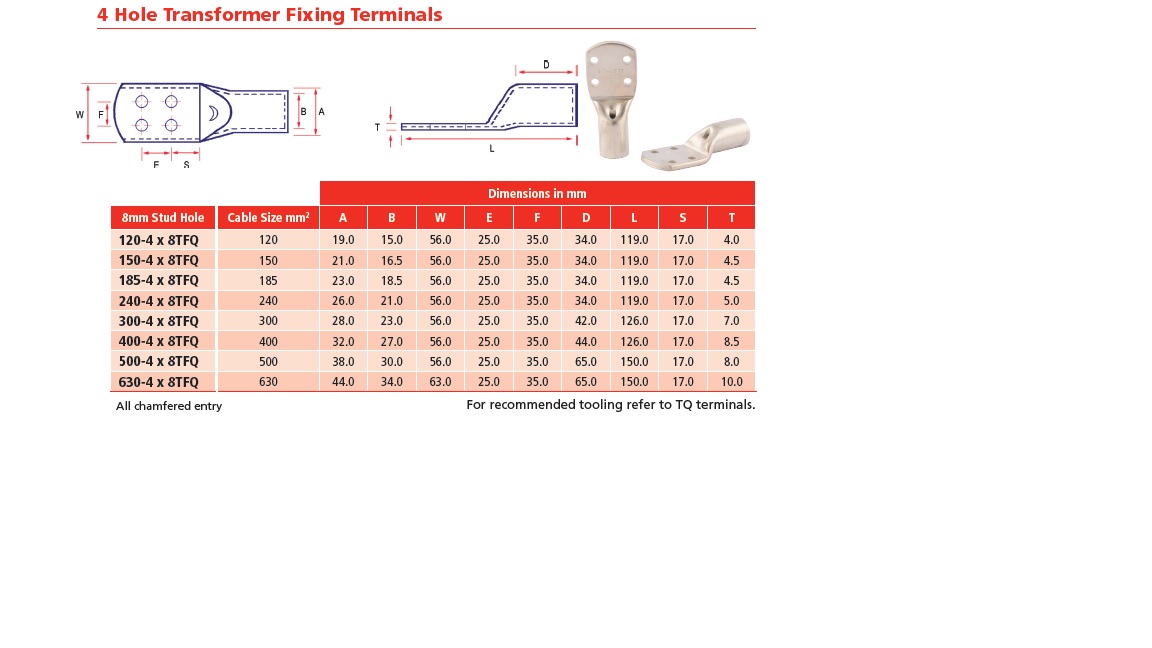

Product CodeDescriptionEANTSI Code
120-4X8TQTransformer Fixing Copper Tube Terminal 120mm²50502910468931990245
150-4X8TQTransformer Fixing Copper Tube Terminal 150mm²50502910321241987821
185-4X8TQTransformer Fixing Copper Tube Terminal 185mm²50502910454761987986
240-4X8TQTransformer Fixing Copper Tube Terminal 240mm²50502910514151988147
300-4X8TQTransformer Fixing Copper Tube Terminal 300mm²50502910514221988273
400-4X8TQTransformer Fixing Copper Tube Terminal 400mm²50502910487741988406
500-4X8TQTransformer Fixing Copper Tube Terminal 500mm²50502910487811988532
630-4X8TQTransformer Fixing Copper Tube Terminal 630mm²50502910487981988561
