35mm - 70mm TQ Range - Copper Tube Terminals


Application: Un-insulated heavy duty terminals suitable for power cables up to 1000 volts

Material: Manufactured from seamless copper tube to BS EN 12449:1999

Finish: Electro Tin plated to BS 1872:1974

  • All terminals are manufactured from 99 .5% copper and fully annealed to ensure optimum ductility to avoid severe deformation such as cracking and splitting when crimped
  • Terminals are supplied with an inspection window which enables the user to ensure full and correct insertion of the conductor and a flared entry ensures a smooth transition from terminal to conductor
  • Internal barrel diameters suit standard cables as defined in BS 6360
  • All SWA terminals are identified on the palm with cable size (and stud hole size) to ensure correct selection of the appropriate tool and dies

Approved to: BS EN 61238-1:2003 Grade A

Certified by: Dekra International

All SWA Copper Tube Terminals are despatched in sealed SWA branded bags to ensure quality & traceability for our customers

Product CodeDescriptionPack QtyEANTSI Code
35-6TQCopper Tube Terminal 35mm X M6 Hole1050502910249901987135
35-8TQCopper Tube Terminal 35mm X M8 Hole1050502910251571987164

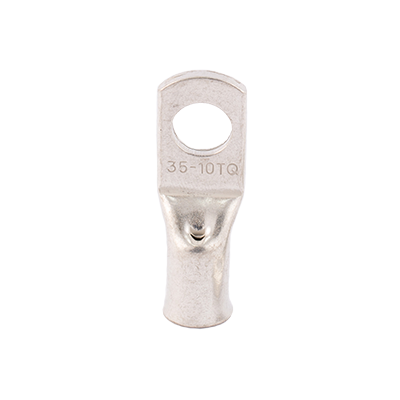

35-10TQCopper Tube Terminal 35mm X M10 Hole1050502910248911987193
35-12TQCopper Tube Terminal 35mm X M12 Hole1050502910249141987229
35-14TQCopper Tube Terminal 35mm X M14 Hole1050502910571651989816
35-16TQCopper Tube Terminal 35mm X M16 Hole105050291058919402813073
50-6TQCopper Tube Terminal 50mm X M6 Hole1050502910221561987287
50-8TQCopper Tube Terminal 50mm X M8 Hole1050502910221631987313

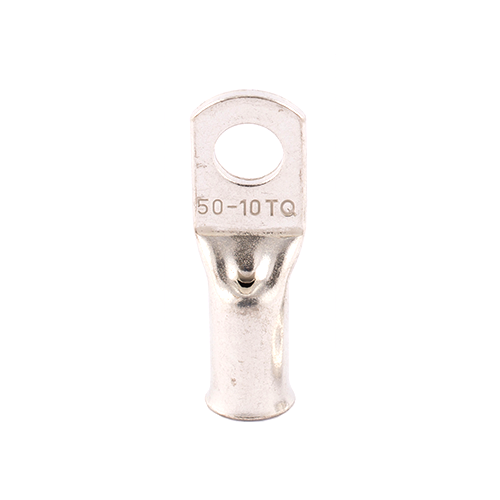

50-10TQCopper Tube Terminal 50mm X M10 Hole1050502910221251987342
50-12TQCopper Tube Terminal 50mm X M12 Hole1050502910221321987371
50-14TQCopper Tube Terminal 50mm X M14 Hole1050502910513851989845
50-16TQCopper Tube Terminal 50mm X M16 Hole1050502910221491989874
70-6TQCopper Tube Terminal 70mm X M6 Hole1050502910250891987436
70-8TQCopper Tube Terminal 70mmX M8 Hole1050502910230471987465

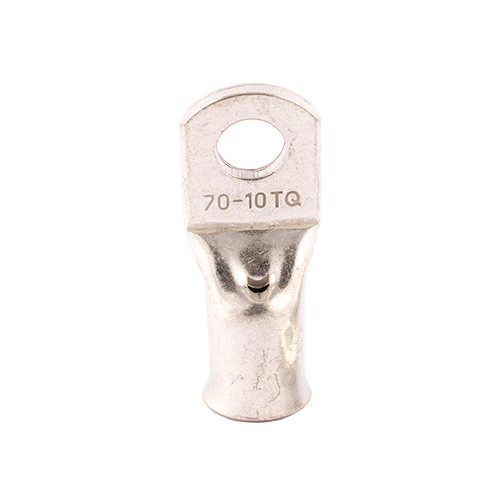

70-10TQCopper Tube Terminal 70mm X M10 Hole1050502910230161987494
70-12TQCopper Tube Terminal 70mm X M12 Hole1050502910230231987520
70-14TQCopper Tube Terminal 70mm X M14 Hole1050502910250721989803
70-16TQCopper Tube Terminal 70mm X M16 Hole1050502910230301989926
