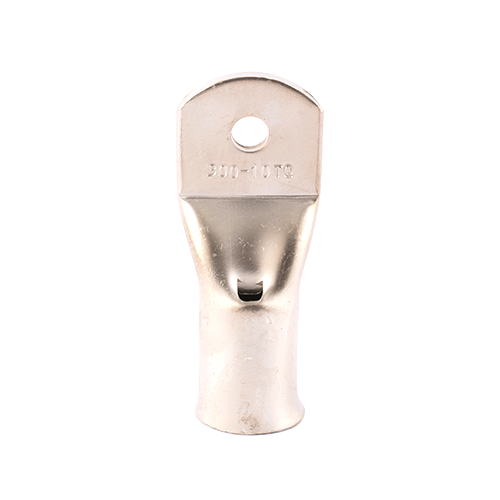

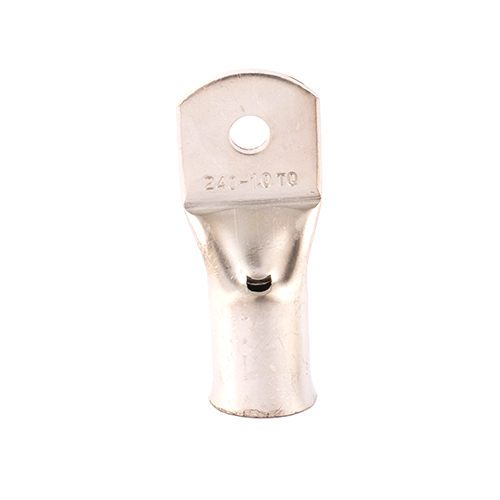

185mm - 300mm TQ Range - Copper Tube Terminals


Application: Un-insulated heavy duty terminals suitable for power cables up to 1000 volts

Material: Manufactured from seamless copper tube to BS EN 12449:1999

Finish: Electro Tin plated to BS 1872:1974

  • All terminals are manufactured from 99 .5% copper and fully annealed to ensure optimum ductility to avoid severe deformation such as cracking and splitting when crimped
  • Terminals are supplied with an inspection window which enables the user to ensure full and correct insertion of the conductor and a flared entry ensures a smooth transition from terminal to conductor
  • Internal barrel diameters suit standard cables as defined in BS 6360
  • All SWA terminals are identified on the palm with cable size (and stud hole size) to ensure correct selection of the appropriate tool and dies

Approved to: BS EN 61238-1:2003 Grade A

Certified by: Dekra International

All SWA Copper Tube Terminals are despatched in sealed SWA branded bags to ensure quality & traceability for our customers

Product CodeDescriptionPack QtyEANTSI Code
185-8TQCopper Tube Terminal 185mm Cable X M8 Hole105050291036245403451036

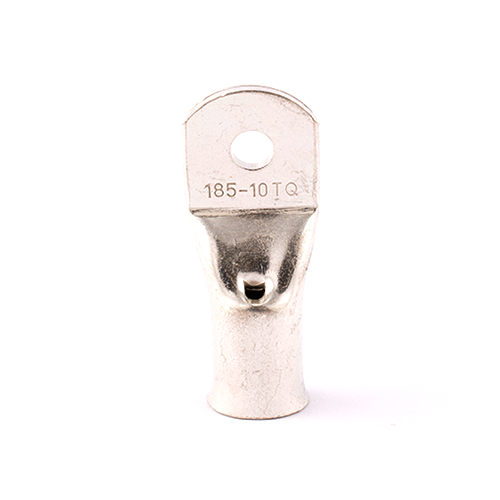

185-10TQCopper Tube Terminal 185mm X M10 Hole1050502910228731988008
185-12TQCopper Tube Terminal 185mm X M12 Hole1050502910407301988037
185-14TQCopper Tube Terminal 185mm X M14 Hole1050502910421611988066
185-16TQCopper Tube Terminal 185mm X M16 Hole1050502910422221988095
185-20TQCopper Tube Terminal 185mm X M20 Hole1050502910544921988121
240-8TQCopper Tube Terminal 240mm x M8 Hole55050291035453403451049
240-10TQCopper Tube Terminal 240mm X M10 Hole550502910487051988163
240-12TQCopper Tube Terminal 240mm X M12 Hole550502910239861988192
240-14TQCopper Tube Terminal 240mm X M14 Hole550502910414851988228
240-16TQCopper Tube Terminal 240mm X M16 Hole550502910409831988257
240-20TQCopper Tube Terminal 240mm X M20 Hole550502910354461990083
300-10TQCopper Tube Terminal 300mm X M10 Hole50502910525801990119
300-12TQCopper Tube Terminal 300mm X M12 Hole50502910487121988299
300-14TQCopper Tube Terminal 300mm X M14 Hole50502910425431988325
300-16TQCopper Tube Terminal 300mm X M16 Hole50502910487291988354
300-20TQCopper Tube Terminal 300mm X M20 Hole50502910516991988383
