10mm - 25mm TQ Range - Copper Tube Terminals

Features

Application: Un-insulated heavy duty terminals suitable for power cables up to 1000 volts

Material: Manufactured from seamless copper tube to BS EN 12449:1999

Finish: Electro Tin plated to BS 1872:1974

  • All terminals are manufactured from 99 .5% copper and fully annealed to ensure optimum ductility to avoid severe deformation such as cracking and splitting when crimped
  • Terminals are supplied with an inspection window which enables the user to ensure full and correct insertion of the conductor and a flared entry ensures a smooth transition from terminal to conductor
  • Internal barrel diameters suit standard cables as defined in BS 6360
  • All SWA terminals are identified on the palm with cable size (and stud hole size) to ensure correct selection of the appropriate tool and dies

Approved to: BS EN 61238-1:2003 Grade A

Certified by: Dekra International

All SWA Copper Tube Terminals are despatched in sealed SWA branded bags to ensure quality & traceability for our customers

Please Note: We are transitioning to new pack-based part numbers (e.g., ending in PK10, PK5), which will appear in the table below for reference. You can continue using the current part numbers, but please ensure you enter the correct pack quantities as indicated below each input box.

Product CodeDescriptionPack QtyEANTSI Code
10-5TQCopper Tube Terminal 10mm X M5 Hole150502910221871986754

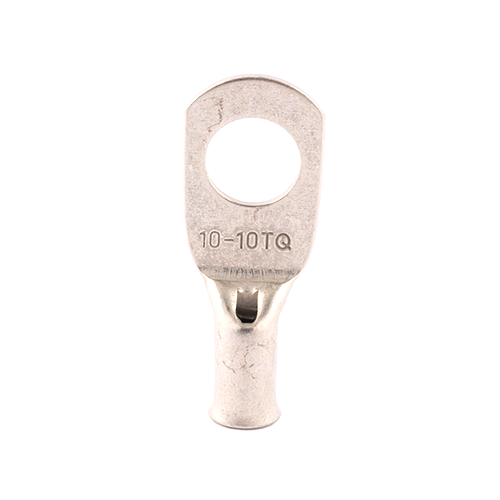

10-10TQCopper Tube Terminal 10mm X M10 Hole150502910210121986819
10-12TQCopper Tube Terminal 10mm X M12 Hole150502910210291986835
25-5TQCopper Tube Terminal 25mm X M5 Hole15050291024310402812838
25-12TQCopper Tube Terminal 25mm X M12 Hole150502910242591987070
10-6TQPK10Copper Tube Terminal 10mm X M6 Hole - Pack of 10105050291302500437927675
10-8TQPK10Copper Tube Terminal 10mm X M8 Hole - Pack of 10105050291302517437927691
16-5TQPK10Copper Tube Terminal 16mm X M5 Hole - Pack of 10105050291302685437927879
16-6TQPK10Copper Tube Terminal 16mm X M6 Hole - Pack of 10105050291302692437927882
16-8TQPK10Copper Tube Terminal 16mm X M8 Hole - Pack of 10105050291302708437927895

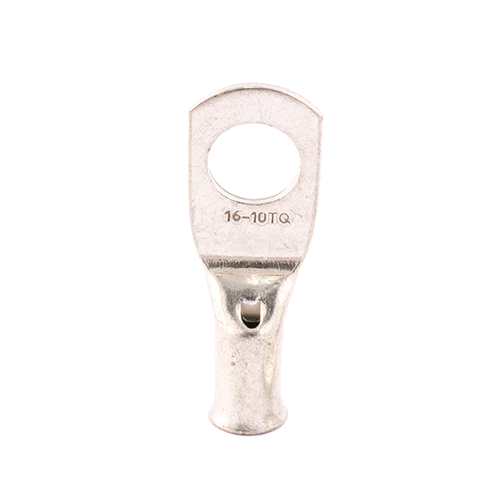

16-10TQPK10Copper Tube Terminal 16mm X M10 Hole - Pack of 10105050291302661437927853
16-12TQPK10Copper Tube Terminal 16mm X M12 Hole - Pack of 10105050291302678437927866
16-16TQPK10Copper Tube Terminal 16mm X M16 Hole - Pack of 10105050291301947437927581
25-6TQPK10Copper Tube Terminal 25mm X M6 Hole - Pack of 10105050291302906437928111
25-8TQPK10Copper Tube Terminal 25mm X M8 Hole - Pack of 10105050291302913437928137

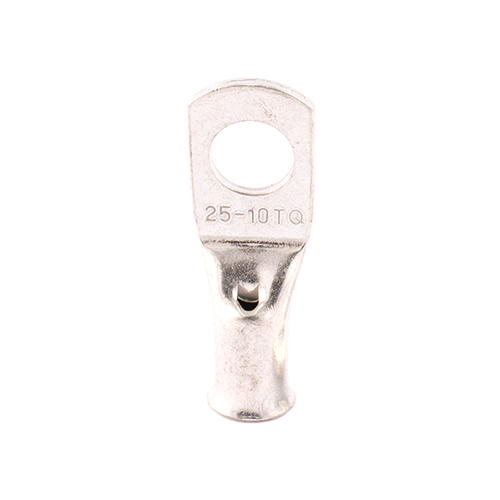

25-10TQPK10Copper Tube Terminal 25mm X M10 Hole - Pack of 10105050291302876437928085
