10PS
10PS

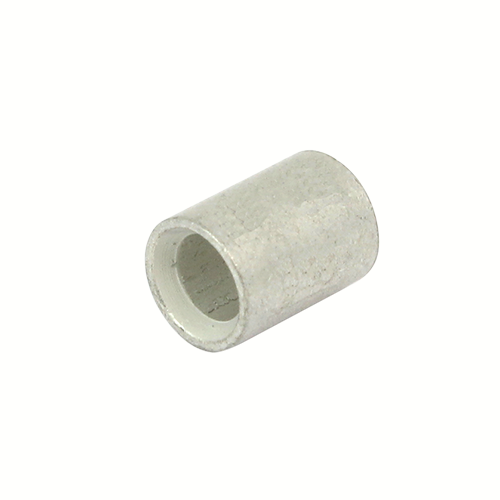

Copper Tube Parallel Splices

Features

Application: Un-insulated heavy duty terminals suitable for power cables up to 1000 volts.

Material: Manufactured from seamless copper tube to BS EN 12449:1999

Finish: Electro Tin plated to BS 1872:1974

  • All terminals are manufactured from 99 .5% copper and fully annealed to ensure optimum ductility to avoid severe deformation such as cracking and splitting when crimped
  • Internal barrel diameters suit standard cables as defined in BS 6360
  • All SWA terminals are identified on the palm with cable size (and stud hole size) to ensure correct selection of the appropriate tool and dies

For recommended tooling refer to TQ terminals

Product CodeDescriptionEANTSI Code
10PSCopper Tube Parallel Splice 10mm²5050291022781402813413
16PSCopper Tube Parallel Splice 16mm²5050291023665402814137
25PSCopper Tube Parallel Splice 25mm² 5050291024464402814166
35PSCopper Tube Parallel Splice 35mm²5050291025201402814182
50PSCopper Tube Parallel Splice 50mm²5050291026574402814205
70PSCopper Tube Parallel Splice 70mm²5050291033992402814221
