Insulated Bootlace Ferrules German

Features

Material: Electrolytic Copper - purity grade 99.9%

Insulation: Polyamide 66

Technical Standards: DIN 462284/4 (insulated) DIN 46228/1 (uninsulated)

Resistance to external agents - good resistance to bases and weak acids . Limited resistance to strong oxidising acids, oil and mineral oils. Not resistant to chlorinated solvents.

Polypropylene

  • Humidity absorption: 0
  • Working Temperature : -40°C to +105°C
  • During installation: From 0°C to +60°C
  • Max. admissible point: +120°C for short periods
  • Melting point: +165°C
  • Limit oxygen index (LOI): 17%



Downloads

See product catalogue (in the 'Download' section) for the latest product details

Product CodeDescriptionEANTSI Code

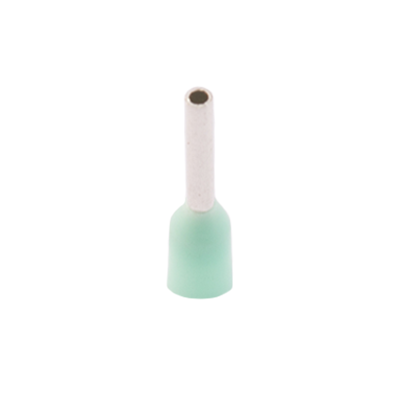

0.3-6IBLF/KInsulated Bootlace Ferrule Turquoise 0.3mm² 5050291022330387299602

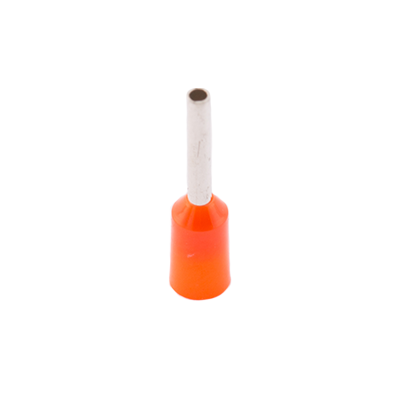

0.50-8IBLF/KInsulated Bootlace Ferrule Orange 0.5mm²50502910319671984633
0.75-8IBLF/KInsulated Bootlace Ferrule White 0.75mm²50502910223851984646

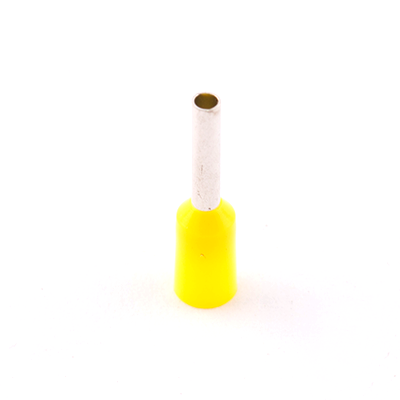

1.0-8IBLF/KInsulated Bootlace Ferrule Yellow 1.0mm²50502910224601984659

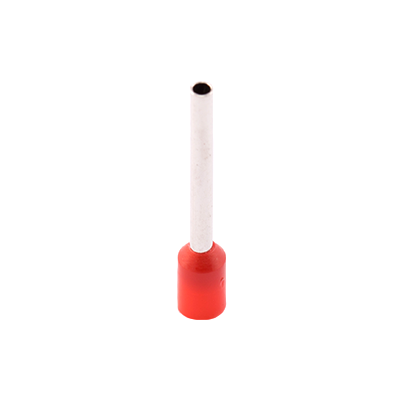

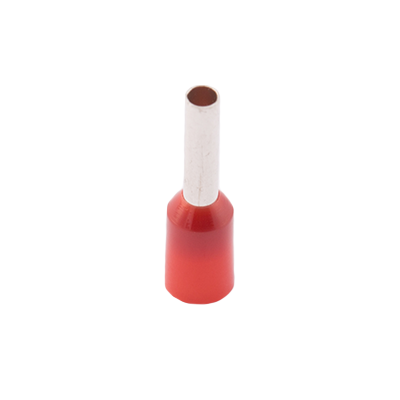

1.5-8IBLF/KInsulated Bootlace Ferrule Red 1.5mm²50502910225071984675

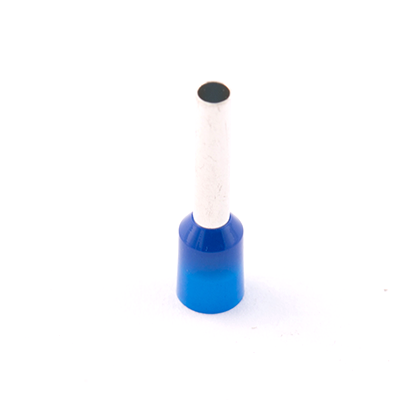

2.5-8IBLF/KInsulated Bootlace Ferrule Blue 2.5mm² 50502910239001984691
2.5-18IBLF/KInsulated Bootlace Ferrule Blue 2.5mm²50502910238491984714
4.0-9IBLF/KInsulated Bootlace Ferrule Grey 4.0mm²50502910256071984727
4.0-18IBLF/KInsulated Bootlace Ferrule Grey 4.0mm²5050291048972

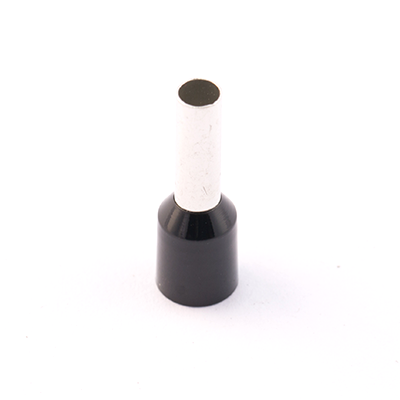

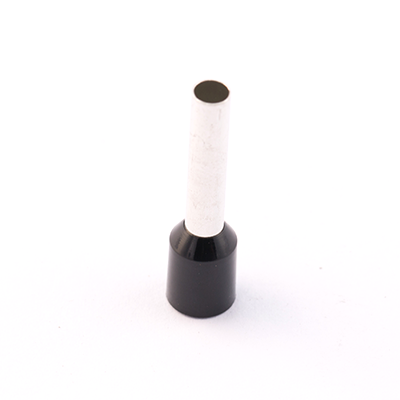

6.0-12IBLF/KInsulated Bootlace Ferrule Black 6mm²50502910269321984743
6.0-18IBLF/KInsulated Bootlace Ferrule Black 6mm² 50502910269561984756

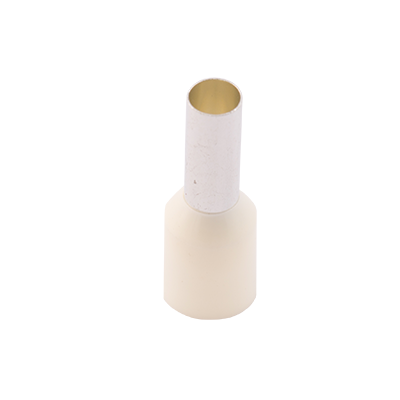

10-12IBLF/KInsulated Bootlace Ferrule Ivory 10mm² 50502910225691984769
10-18IBLF/KInsulated Bootlace Ferrule Ivory 10mm² 50502910226201984772

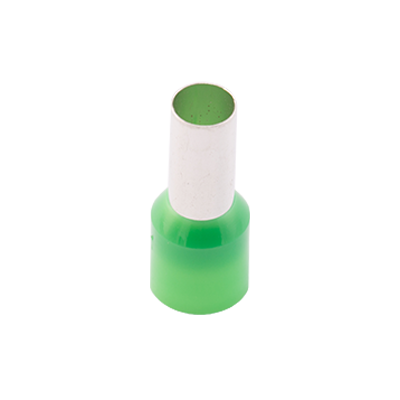

16-12IBLF/KInsulated Bootlace Ferrule Green 16mm²50502910234361984785
16-18IBLF/KInsulated Bootlace Ferrule Green 16mm²50502910234981984798

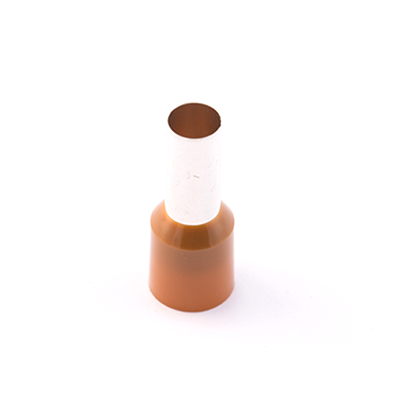

25-16IBLF/KInsulated Bootlace Ferrule Brown 25mm²50502910242731984808

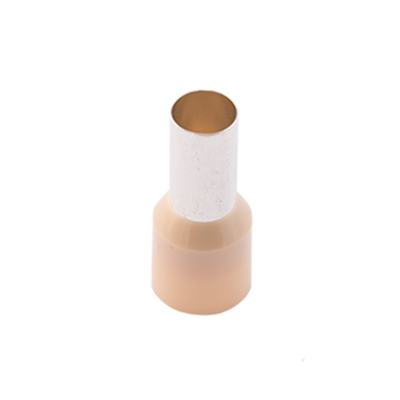

35-25IBLF/KInsulated Bootlace Ferrule Beige 35mm²50502910249691984811
50-20IBLF/KInsulated Bootlace Ferrule Olive 50mm² 5050291042093387300096
70-20IBLF/KInsulated Bootlace Ferrule Yellow 70mm²5050291042109387300164

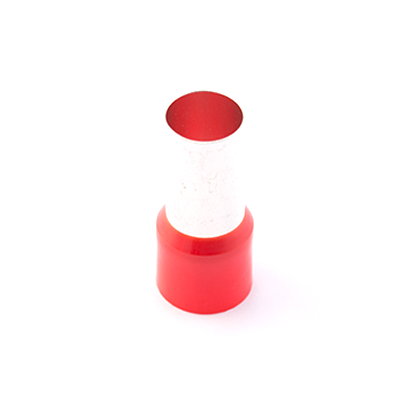

95-25IBLF/KInsulated Bootlace Ferrule Red 95mm² 5050291042116387300193
