PE1W LSZH Brass Glands


Application: Brass indoor and outdoor gland suitable for all types of steel wire armoured cable (SWA), providing an environmental seal on both the cable inner and outer sheaths.

The gland also provides mechanical cable retention and electrical continuity via armour wire termination.

Operating temp: -20°C to +130°C
Approval: BS EN 62444:2013
Ingress protection: IP66

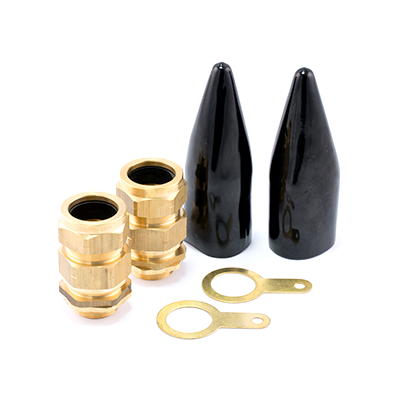

Pack content: Gland(s), steel locknut(s), earth tag(s) and shroud(s)

Product CodeDescriptionPack QtyEANTSI Code
PE1W2016LSZH PACKEIW20/16 LSZHGland Pack25050291099295N/A
PE1W20SLSZH PACKEIW20S LSZH Gland Pack25050291099301408408424
PE1W20LSZH PACKEIW20 LSZH Gland Pack25050291099318408408408
PE1W25LSZH PACKEIW25 LSZH Gland Pack25050291099325408408440
PE1W32LSZH PACKEIW32 LSZH Gland Pack25050291099332408408479
PE1W40LSZH PACKEIW40 LSZH Gland Pack15050291099349408408495
PE1W50SLSZH PACKEIW50S LSZH Gland Pack15050291099356408408534
PE1W50LSZH PACKEIW50 LSZH Gland Pack15050291099363408408518
PE1W63SLSZH PACKEIW63S LSZH Gland Pack15050291099370408408589
PE1W63LSZH PACKEIW63 LSZH Gland Pack15050291099387408408550
PE1W75SLSZH PACKEIW75S LSZH Gland Pack15050291099394N/A
PE1W75LSZH PACKEIW75 LSZH Gland Pack15050291099400408408602
PE1W90LSZH PACKEIW90 LSZH Gland Pack15050291099417408408631
