CG-SF-20SR
CG-SF-20SR
CG-SF-20SR
CG-SF-20SR
CG-SF-20SR
CG-SF-20SR
  • CG-SF-20SR
  • CG-SF-20SR
  • CG-SF-20SR
  • CG-SF-20SR
  • CG-SF-20SR
  • CG-SF-20SR

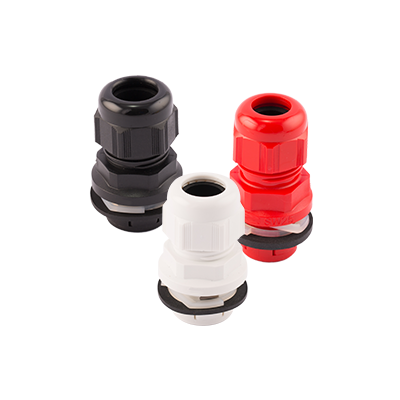

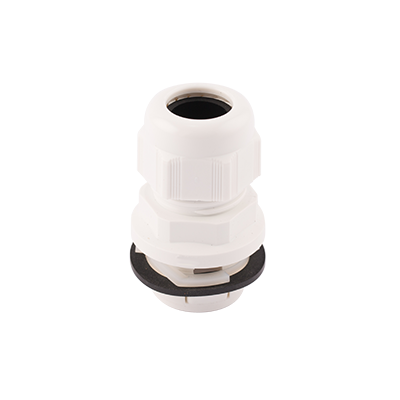

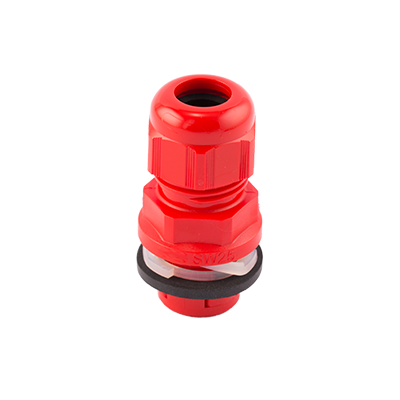

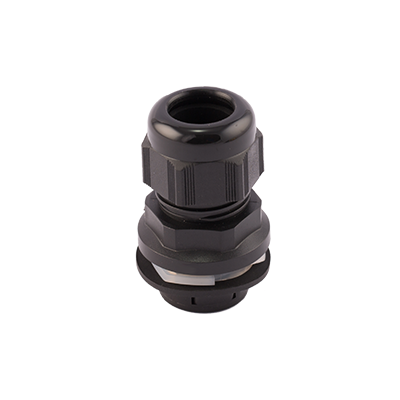

SmartFit Cable Glands

Features

SWA’s revolutionary SmartFit Glands™

Fast Action – just push and twist
Enjoy incredible time saving and increased
profitability
• Time saving (just snaps into place)
• Locknut or threaded hole not required
• Push & twist gland to fit in seconds
• IP68 rated (5 bar, 30 mins)
• Flammability: UL94 V2
• UL Approved: E-199260
• VDE (0619) Approved: DIN EN 62444
• Fitted with neoprene seal – so never perishes
• PA6 Polyamide construction
• Fits wall thickness 0.5mm-4mm
• Easy removal with separate tool
• Red, grey, black, white and nickel-plated brass
versions in 16mm, 20S, 20, 25, 32 or 40mm sizes

Downloads

See product catalogue (in the 'Download' section) for the latest product details

Videos

Product CodeDescriptionEANTSI Code
CG/SF-16BPolyamide Smartfit Cable Gland 5 - 10mm Dia. Black5050291093361
CG/SF-20SRPolyamide Smartfit Cable Gland 6 - 12mm Dia. Red5050291087032401495094
CG/SF-20SGPolyamide Smartfit Cable Gland 6 - 12mm Dia. Grey5050291087049401495803
CG/SF-20SBPolyamide Smartfit Cable Gland 6 - 12mm Dia. Black5050291087766402164586
CG/SF-20SWPolyamide Smartfit Cable Gland 6 - 12mm Dia. White5050291087773402164625
CG/SF-20RPolyamide Smartfit Cable Gland 7 - 13mm Dia. Red5050291087056401495829
CG/SF-20GPolyamide Smartfit Cable Gland 7 - 13mm Dia. Grey5050291087063401495832
CG/SF-20BPolyamide Smartfit Cable Gland 7 - 13mm Dia. Black5050291087780402164670
CG/SF-20WPolyamide Smartfit Cable Gland 7 - 13mm Dia. White5050291087797402164683
CG/SF-25RPolyamide Smartfit Cable Gland 11 - 17mm Dia. Red5050291087094401495845
CG/SF-25GPolyamide Smartfit Cable Gland 11 - 17mm Dia. Grey5050291096508401495861
CG/SF-25BPolyamide Smartfit Cable Gland 11 - 17mm Dia. Black5050291087803402164696
CG/SF-25WPolyamide Smartfit Cable Gland 11 - 17mm Dia. White5050291087810402164706
CG/SF-32GPolyamide Smartfit Cable Gland 15 - 21mm Dia. Grey5050291087841402262831
CG/SF-40GPolyamide Smartfit Cable Gland 19 - 28mm Dia. Grey5050291087858402262860

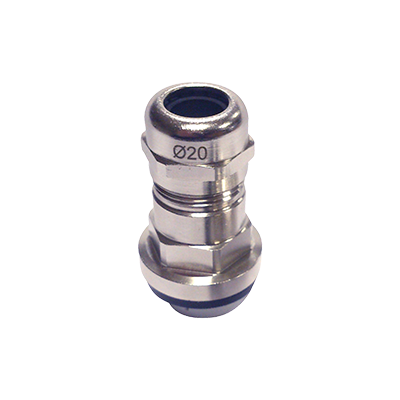

CGB/SF-20SBrass Smartfit Cable Gland M20S5050291087865404956556
CGB/SF-20Brass Smartfit Cable Gland M205050291087872404956543
CGB/SF-25Brass Smartfit Cable Gland M255050291087889404956569
CGB/SF-32Brass Smartfit Cable Gland M325050291087896404956572
CGB/SF-40Brass Smartfit Cable Gland M405050291087902404956530
CGSFA-202520 - 25mm Speedfit Gland Adaptor Tool5050291087131401660997
CGSFA-324032 - 40mm Speedfit Gland Adaptor Tool5050291088442403448104
