A2F2016 PACK

A2F Brass Glands Hazardous Area

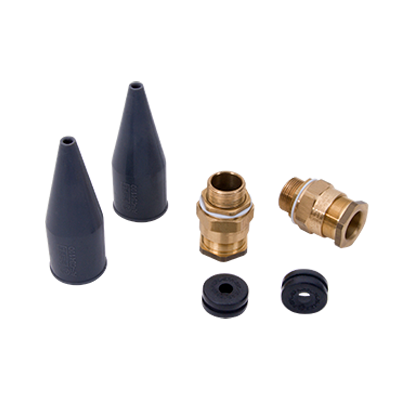

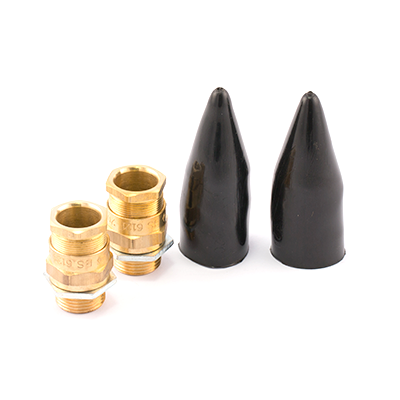

A2F Range Brass Cable Gland Pack

Application: Dual certified flameproof Ex d and Increased Safety Ex e indoor and outdoor cable gland for use of in Zone 1, Zone 2, Zone 21 and Zone 22 hazardous areas with all types of circular unarmoured cable, providing a flameproof seal on the cable outer sheath.
Gland must be used as part of a certified assembly in surface installations only. Gland may not be used on a group IIC Ex d Enclosure that is larger than 2000cc volume.
Certification: ITS11 ATEX 17453X (For Ex d & Ex e)
Ingress protection: IP67
Continuous operating temp: -60°C to +125°C
Degree of protection: IEC 60529
Electrical Apparatus Use in Dust Zone 21 & 22:
EN 60079-31:2014
Approval: BS EN 62444:2013
Code of protection category: II 2 GD, Ex d IIC Gb / Ex e IIC Gb -20°C to +100°C, Ex tb IIIC -20°C to +100°C Db IP67, Equipment Zone 1, Zone 2, Zone 21 and Zone 22. Gas Groups IIA, IIB, IIC

Compliance standards: EN 60079-0:2012 & A11:2013 IEC 60529 EN 60079-1:2014 EN 60079-31:2014

Cable type: Unarmoured, SWA Extruded Bending Cable
Sealing area(s): Outer Sheath
Sealing material: EPDM / Elastomeric

Product CodeDescriptionEANTSI Code
A2F2016 PACKFlameproof Brass Cable Gland Pack5050291028530N/A
A2F/20S PACKFlameproof Brass Cable Gland Pack5050291047463N/A
A2F/25 PACKFlameproof Brass Cable Gland Pack5050291047470N/A
A2F/20 PACKFlameproof Brass Cable Gland Pack5050291048231N/A
A2F/32 PACKFlameproof Brass Cable Gland Pack5050291053754N/A
A2F/40 PACKFlameproof Brass Cable Gland Pack5050291053778N/A
A2F/50 PACKFlameproof Brass Cable Gland Pack5050291028523N/A
