SP-M20HN-EEXE

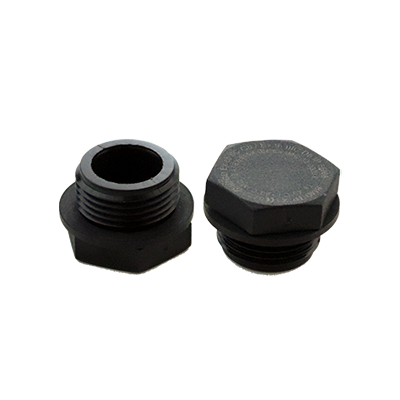

Nylon Hex Head EEXE Stopping Plugs

Features

Hexagonal Plugs

EX Metric nylon (PBT) EExe II certified stopping plugs.
Material: PBT (Polybutylene Terephalate)
lP ratings: IP66/68 (with sealing washer)
Standards: ATEX Category 2, Category 3, II 2GD EExe e 11 Zones 1, 2, 21 & 22 EEx e IIC. DIP A21
Material: Body PA 6 (Polyamide 6)
O-ring CR ( Chloroprene ), Silicone
Ingress Protection Rating: IP 68 - 5 Bar, 30 min IP 66
Operating Temperature: O-ring Material
CR (Chloroprene) Silicone
Ex eb/tb / Ex tb -40°C to +80°C -60°C to +80°C
Ex i -40°C to +70°C -60°C to +70°C
Equipment for:
• Gas & Dust potentially explosive atmospheres.
• Cable glands should be also used for intrinsically safe circuits Ex-i.

Product CodeDescription
SP-M20HN-EEXEM20 Nylon EEXE Stop Plug (Hex Head)
SP-M25HN-EEXEM25 Nylon EEXE Stop Plug (Hex Head)
SP-M32HN-EEXEM32 Nylon EEXE Stop Plug (Hex Head)
