C3-100

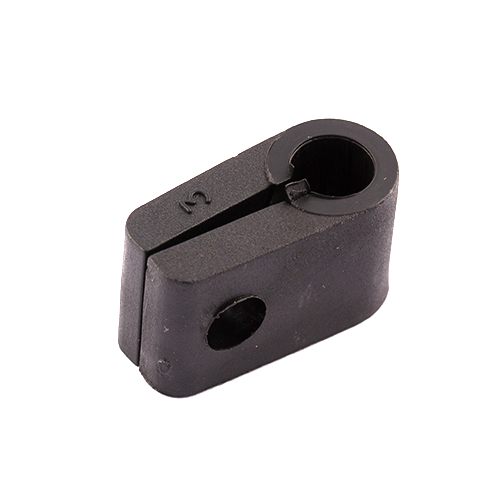

One Piece Single Fixing Cable Cleat

Features

A comprehensive range of single fixing cable cleats to provide a simple, but strong means of
securing cables. Suitable for use with cables or pipes up to 50.8mm in overall diameter.
The range is augmented by the two part two hole fixing cleats which cover from 50mm to 85mm overall
diameter.

Features
• Manufactured in high strength polypropylene not polythene
• High impact resistance
• Unaffected by corrosive environments
• Higher mechanical strength than polythene
• High level of resistance to ultra violet light
• Stability down to -35OC and up to 105OC constant

Low Smoke Halogen Free & Fire Retardant Cleats (LSF) range available on request.

Product CodeDescriptionPack QtyEANTSI Code
C3-100One Piece Single Fixing Cable Cleat 5 - 7.6mm1005050291002714403447891
C4-100One Piece Single Fixing Cable Cleat 7.7 - 10mm1005050291002721403447901
C5-100One Piece Single Fixing Cable Cleat 10.1 - 12.7mm10050502910027381983786
C6-100One Piece Single Fixing Cable Cleat 12.6 - 15.2mm10050502910027521983799
C7-100One Piece Single Fixing Cable Cleat 15.1 - 17.8mm10050502910027761983809
C8-100One Piece Single Fixing Cable Cleat 17.7 - 20.3mm10050502910027901983812
C9-100One Piece Single Fixing Cable Cleat 20.1 - 22.8mm10050502910028061983825
C10-100One Piece Single Fixing Cable Cleat 22.7 - 25.4mm10050502910026151983838
C11-50One Piece Single Fixing Cable Cleat 25.3 - 27.7mm5050502910026221983731
C12-50One Piece Single Fixing Cable Cleat 27.6 - 30.5mm5050502910026461983841
C14-50One Piece Single Fixing Cable Cleat 30.4 - 35.5mm5050502910026601983854
C16-50One Piece Single Fixing Cable Cleat 35.4 - 40.6mm5050502910026841983867
C18-50One Piece Single Fixing Cable Cleat 40.5 - 45.7mm5050502910026911983870
C20-50One Piece Single Fixing Cable Cleat 45.6 - 50.8mm5050502910027071983883
