TBLSF01

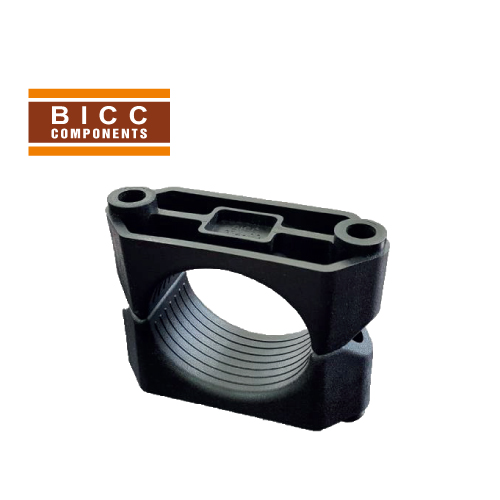

BICC Components - LSZH Two Bolt Cleats

Features

Two bolt LSZH cable cleat, for use with all types of LV LSZH cables

• Designed to ensure cable retention and support, without causing damage or deformation to the cable

• Excellent resistance to ultraviolet and weather

• Two bolt, two piece design

• Appropriate for cable diameters ranging from 50mm to 94mm

• Tested in accordance with BS EN 60754-2:2014

Standard: BS EN 61914:2016
Cable type: Designed for all types of LSZH cables
Material: Low Smoke Zero Halogen Polymer
Continuous operating temperature: -40°C to +60°C

Product CodeDescriptionPack QtyEANTSI Code
TBLSF01Plastic LSF Two Bolt Cleat 50mm-58mm15050291107846408552846
TBLSF02Plastic LSF Two Bolt Cleat 56mm-64mm15050291098496408552859
TBLSF03Plastic LSF Two Bolt Cleat 62mm-70mm15050291078603408552574
TBLSF04Plastic LSF Two Bolt Cleat 68mm-76mm15050291107877408552587
TBLSF05Plastic LSF Two Bolt Cleat 74mm-82mm15050291107884408552590
TBLSF06Plastic LSF Two Bolt Cleat 80mm-88mm15050291107891408552600
TBLSF07Plastic LSF Two Bolt Cleat 86mm-94mm15050291107907408552613
