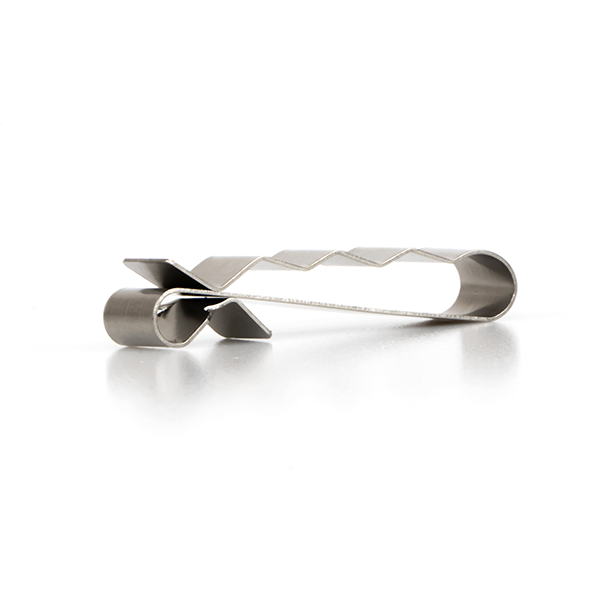

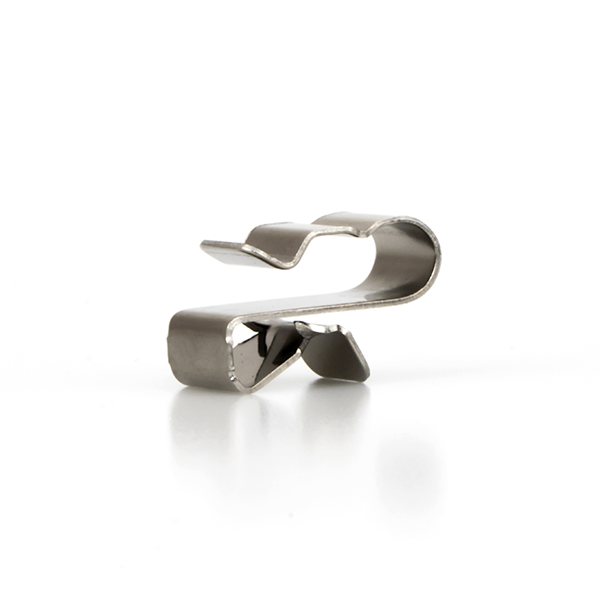

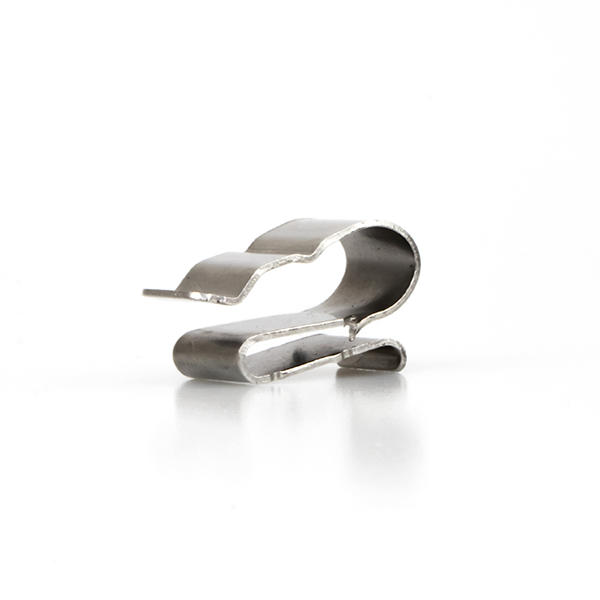

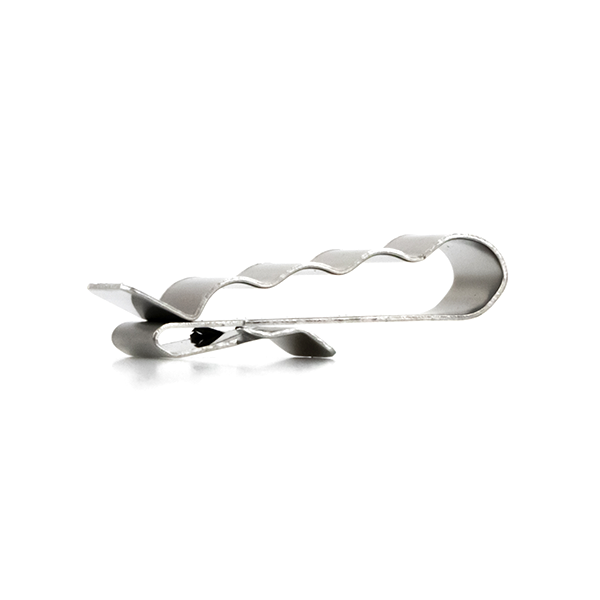

Solar Cable Clips
Features
Engineered for special or thicker module frame or racking profile. SWA solar cable clips simplify wire management and create a cleaner aesthetic for solar PV arrays.
Features:
- Made from corrosion resistant 304 Stainless Steel
- Two cable compartments
- 180 degrees mounting configurations
- Supports a broad range of cable OD's, from 5.5 to 6mm
- Easy installation and removal, no tool required
| Part Number | Supports Cable Size | Thickness (mm) | Length (mm) | Width (mm) | Clip Length (mm) |
|---|---|---|---|---|---|
| SCC4-2W | 2 x 4mm² | 0.6 | 18.7 | 10 | 13.85 |
| SCC6-2W | 2 x 6mm² | 0.6 | 18.7 | 10 | 13.85 |
| SCC4-4W | 4 x 4mm² | 0.6 | 31.5 | 10 | n/a |
| SCC6-4W | 4 x 6mm² | 0.6 | 46.5 | 10 | n/a |
